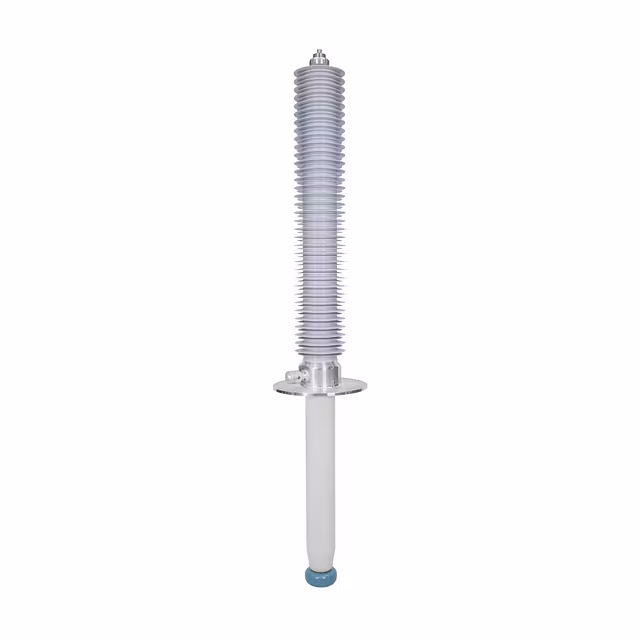

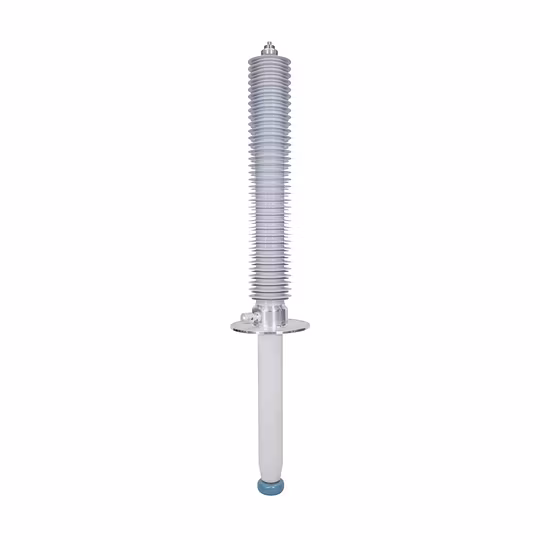

Transformer bushings | DURESCA® | Oil-Outdoor | DTOIA(S)
Available with both technologies:
RIP – RESIN IMPREGNATED PAPER or
RIS – RESIN IMPREGNATED SYNTHETIC.
- Highest operational safety and longest lifetime guaranteed through dry high grade condenser design
- Safe service operation conditions with composite silicon insulation, non-inflammable
- Core is fixed to the flange
- Partial discharges free operation
- Maintenance free operation due to absence of oil
Specifications and Downloads
Technical Specifications
- Voltage class: 25 to 500kV
- Current 400 to 5000A
In addition to the standard products, Moser Glaser can offer various solutions to be interchangeable with existing bushings or when special conditions are required, by example:
- Extra creepage distance
- Altitude above 1000 m

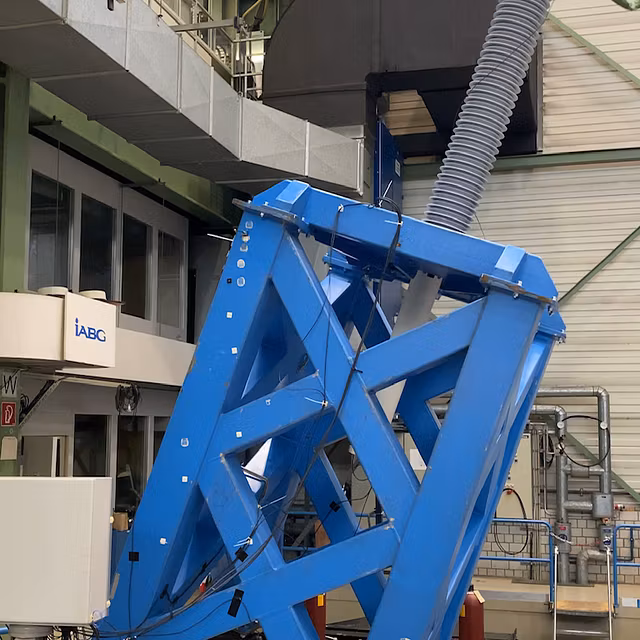

MGC offers 230-300kV bushings with RIP or RIS insulation as per the strongest requirement from the IEEE 693-2018 // High Performance Level 2.0 g
The videos from the tests are available on our YouTube channel:
https://www.youtube.com/channel/UCvyfr_57Ng1rNnd93LQiYyw
Features
RIS insulation offers additional features:
- Not affected by humidity;
- Easier handling for long transportation and storage;
- Reduced power factor/tan delta and capacity
