Wall bushings | DURESCA®

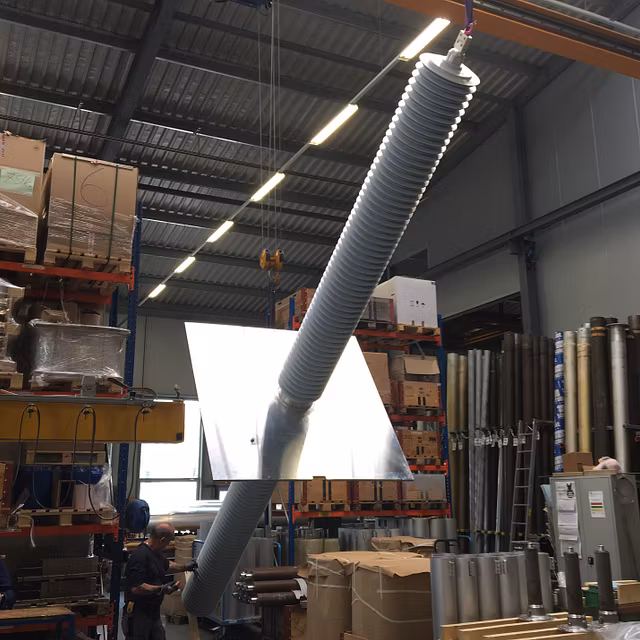

RIP insulated wall bushings up to 300 kV, available for indoor/indoor (DM), indoor/outdoor (DMI) and outdoor/outdoor (DM2I) applications

  • Dry type RIP insulation, no oil leakage coming from the bushing, no risk of fire
  • Moser Glaser pioneered the standardization of silicone rubber insulators on bushings, bringing a high level in safety and reliability to the Electric Utility industry and increasing the performance of the bushing in heavily polluted environments
  • RIP bushings can be installed at any position from 0° to 90° from vertical, suitable for roof and wall mounting
  • Reliable design > 30 years lifetime and maintenance free



Find your local contact

Specifications and Downloads

Technical Specifications

  • Voltage Range: 36 kV to 300 kV  (up to 200 kV DC)
  • Current: 630 A to 6300 A
  • Insulation: Capacitive fine graded; Resin Impregnated Paper (RIP)
  • Special application at SVC / STATCOM stations
  • For use in HVDC sites

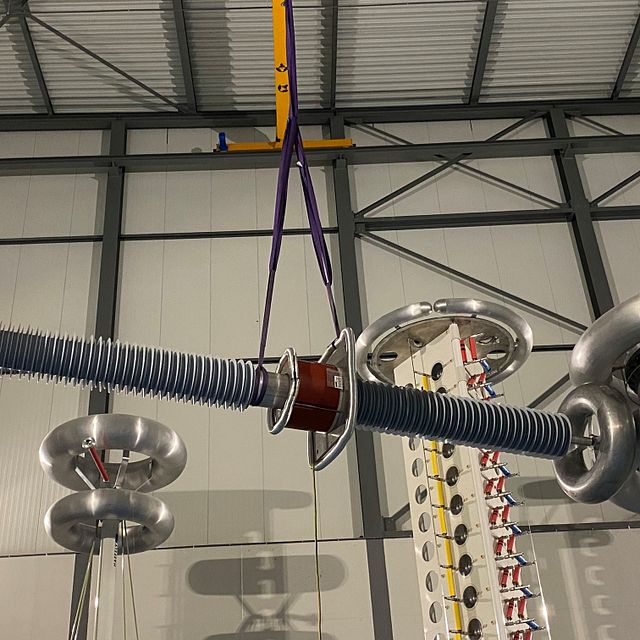

  • Combined with pre-assembled current transformers
