The TIRESCA® busbars are fully insulated for low voltage up to 3.6 kV and partially insulated up to 36 kV with cast epoxy resin.

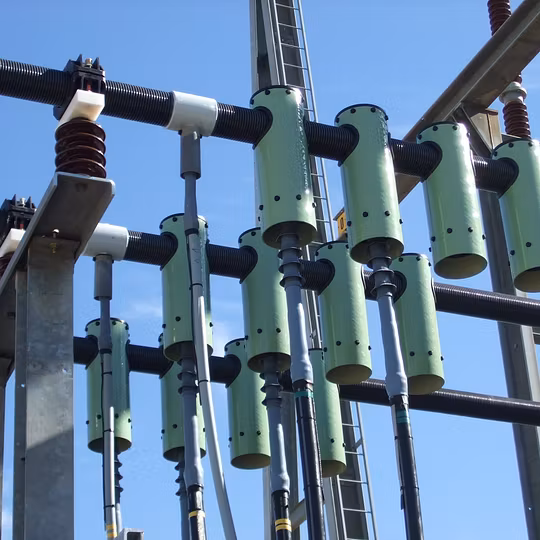

The partially insulated busbars are mainly used in outdoor switchyards such as transformers and cable distribution to protect the system against shorts caused by small animals and birds.
- TEL type is fully insulated up to 3.6 kV / 8000 A
- TE type is partially insulated for MV applications up to 36 kV / 4000 A in outdoor switchyards and mounted on supporting insulators using clamps.
TIRESCA busbar systems have a polyamide protection jacket.
The main feature is the reduction of the distances between the phases compared to blank, non-insulated busbars.
TIRESCA busbars are simply and quickly installed and guarantee a long and maintenance-free operation.
Specifications and Downloads
Technical Specifications
- Conductor in aluminium or corper
- Busbar protection class: IP67, connecting sleeves: IP 54 as standard or IP 68 as an option
- Resistant to humidity and moisture ingress, no risk of corrosion
- Easy and fast assembling
- Maintenance free
- Excellent barrier against humidity and moisture ingress
- Excellent mechanical protection
- High stability against UV radiation
- Moser-Glaser has been using this type of protection envelop for more than 30 years.
