SH-R

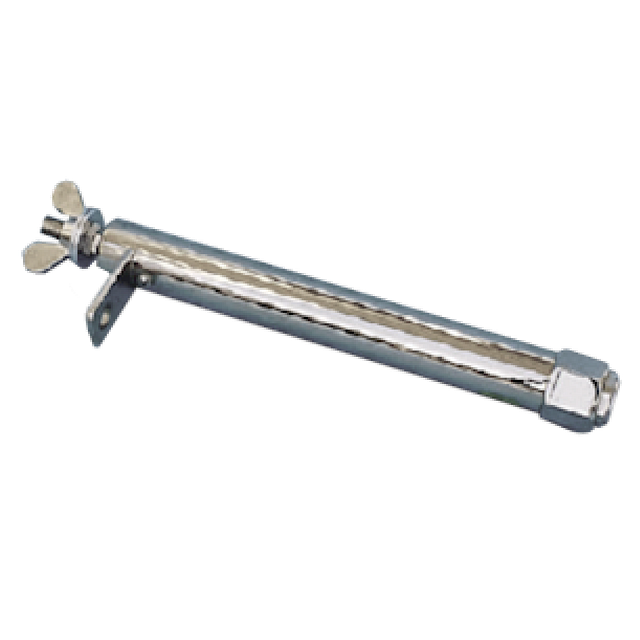

These shunts are used for the measurement of very high impulse currents in high-voltage test labs. The wave shape of the measured current can be displayed on a HAEFELY highest resolution impulse analysing system HiAS 744. The shunts consist of a metal cylinder with coupling flanges and a coaxial measuring connector
Each resistance value is a separate shunt. The standard repetition rate allows measuring impulse currents up to 100 kA (voltage drop 500 V), and at reduced repetition rate up to 200 kA are possible (voltage drop 1000 V)
