RSG-482

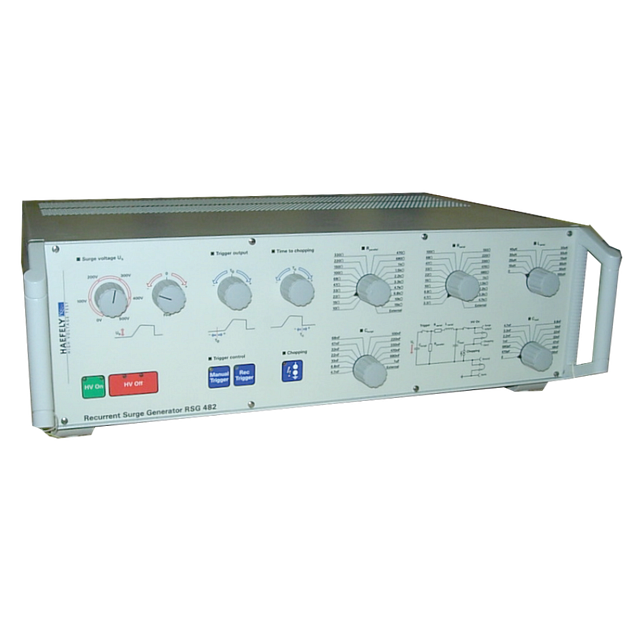

Recurrent Surge Generator 482 is a bench-top, one stage, low voltage equivalent of a high voltage impulse generator. Its wide range of applications includes the testing of models, the study of voltage distribution in high voltage windings during impulse voltage stresses and the predetermination of the circuit parameters of impulse test plants.
Tests can be performed quickly and reliably without endangering personnel. All impulse circuit elements and, therefore, all impulse wave forms may be varied within broad limits with selector knobs. Due to the repetition frequency of 25 Hz, the voltage impulse may be observed and evaluated on any oscilloscope as a standing image.
Features
- Repetition frequency of 25 Hz for using with any oscilloscope as a standing image
- All Impulse parameters can be adjusted in steps trough rotary switches
- Additional capacitors and resistors can be connected externally
- Output voltage continuously adjustable and stabilized
- Continuously adjustable oscilloscope trigger delay
