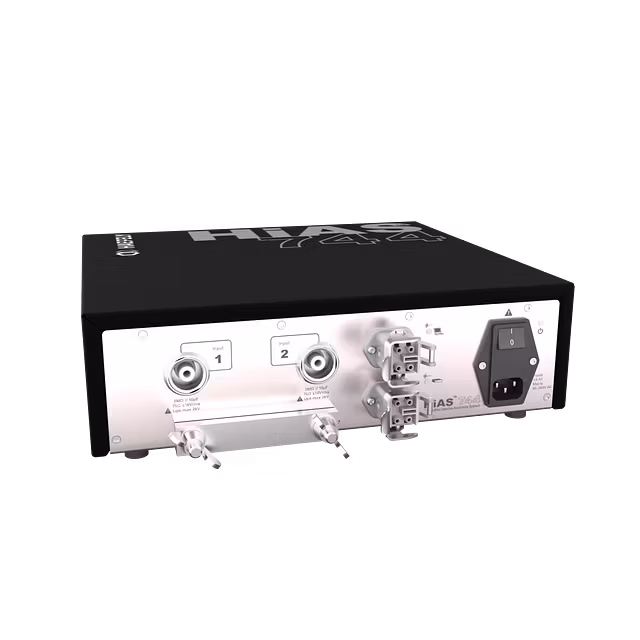

HiAS 744-REF
The HiAS™ 744 is a unique, tailor-made impulse analyzer for the industry. This reference version provides a new front-end solution with 16-bit resolution and up to 250 MS/s together with the highest measurement accuracy. It is provided by default with an EN / ISO 17025 calibration.
HiAS Software, which has been upgraded to suit the new hardware, retains the comfortable interface proven and tested by many hundreds of satisfied users, and continues to be compatible with the former versions of data files of the HiAS™, allowing data comparison to older measurements.
The optically decoupled front end provides complete galvanic isolation between control room and test field. It thus affords the personnel the highest safety level and in addition minimizes ground loop, resulting in a reduced interference coupling.
Features
- 16-bit resolution at 250 MS/s, 100 MHz analog bandwidth
- EN/ISO 17025 calibrated
- Optically decoupled front-end solution
- 2000 Vpk down to 5 Vpk analog input range with LEMO 4S connector
- 2 Channels digitizer unit, can be cascaded
- Exceeds latest IEC 61083-1, -2, IEC 60060-2, IEEE Std. 4 and related standards
- 4th Generation digitizer
- Mains powered
- The highest measurement accuracy in the market
- Excellent interference immunity and safe operation
- No battery pack or recharge needed
