Current transformer XT

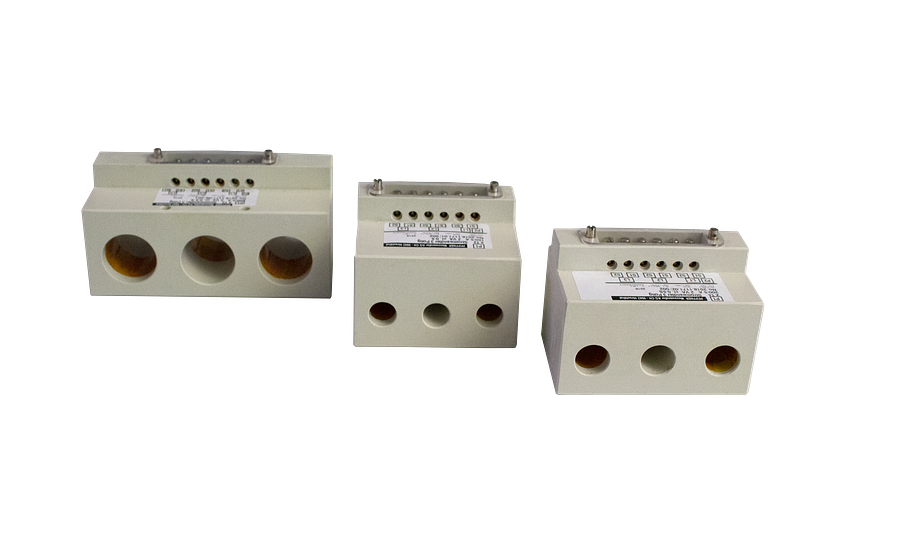

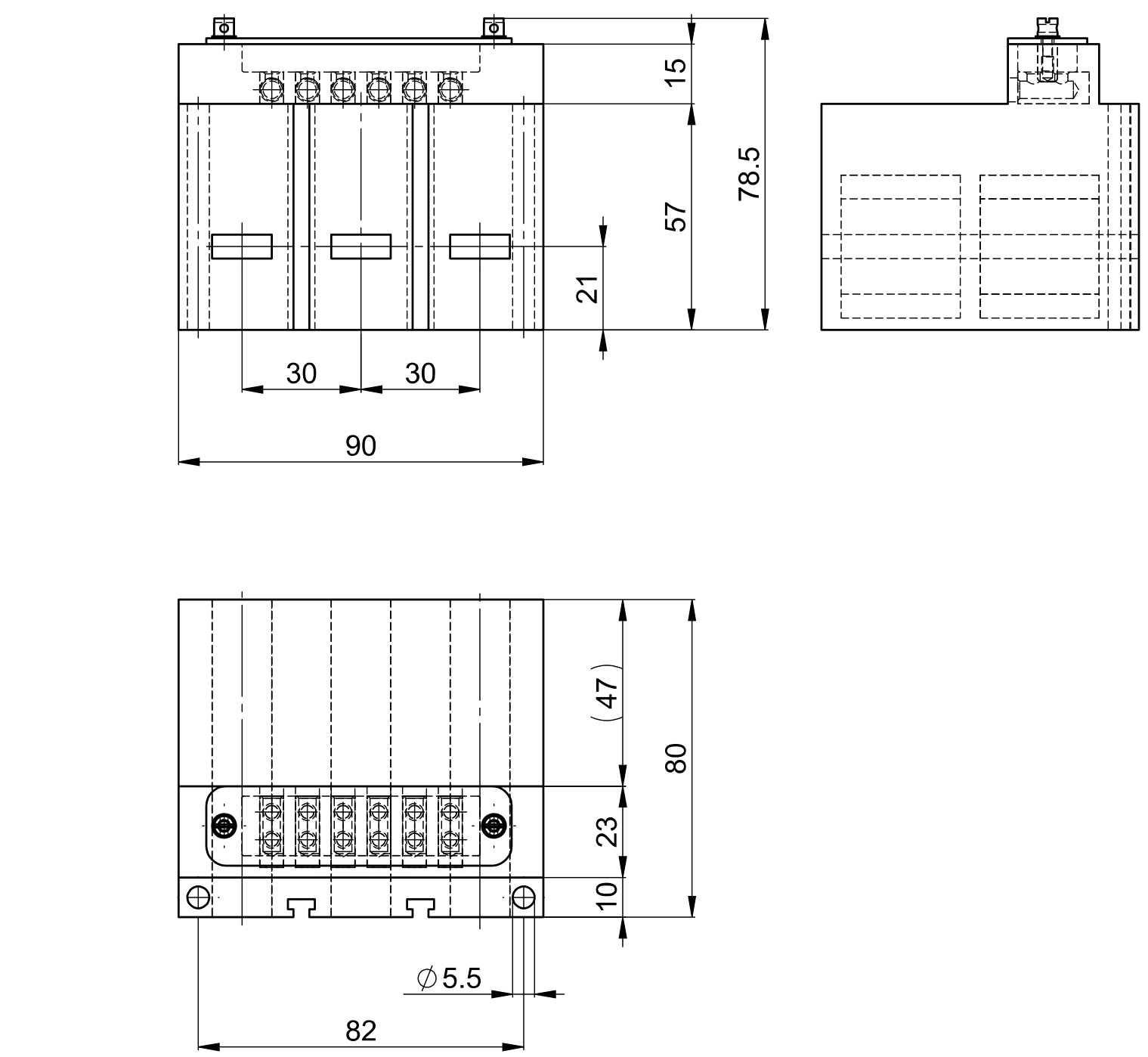

The XT has been designed for TMAX XT circuit breaker.

  • For use in compact low-voltage circuitbreakers 60-600 A
  • Compact three-phase block CT's with voltage taps and neutral conductor feed-through
  • Simple and quick installation
  • Standard: IEC/EN 61869-2
  • Official calibration possible
Factsheet
Find your local contact

Highlights

SAS Swiss Accreditation

Official calibration

Official calibration possible according to the ordinance of the EJPD on measuring instruments for electrical energy and power.

PFIFFNER block CT advantage

  • Compact solutions which wouldn't be possible with standard products
  • All parameters are maintained despite the compact design
  • Significant reduction of the total costs

Specifications and Downloads

Technical Specifications

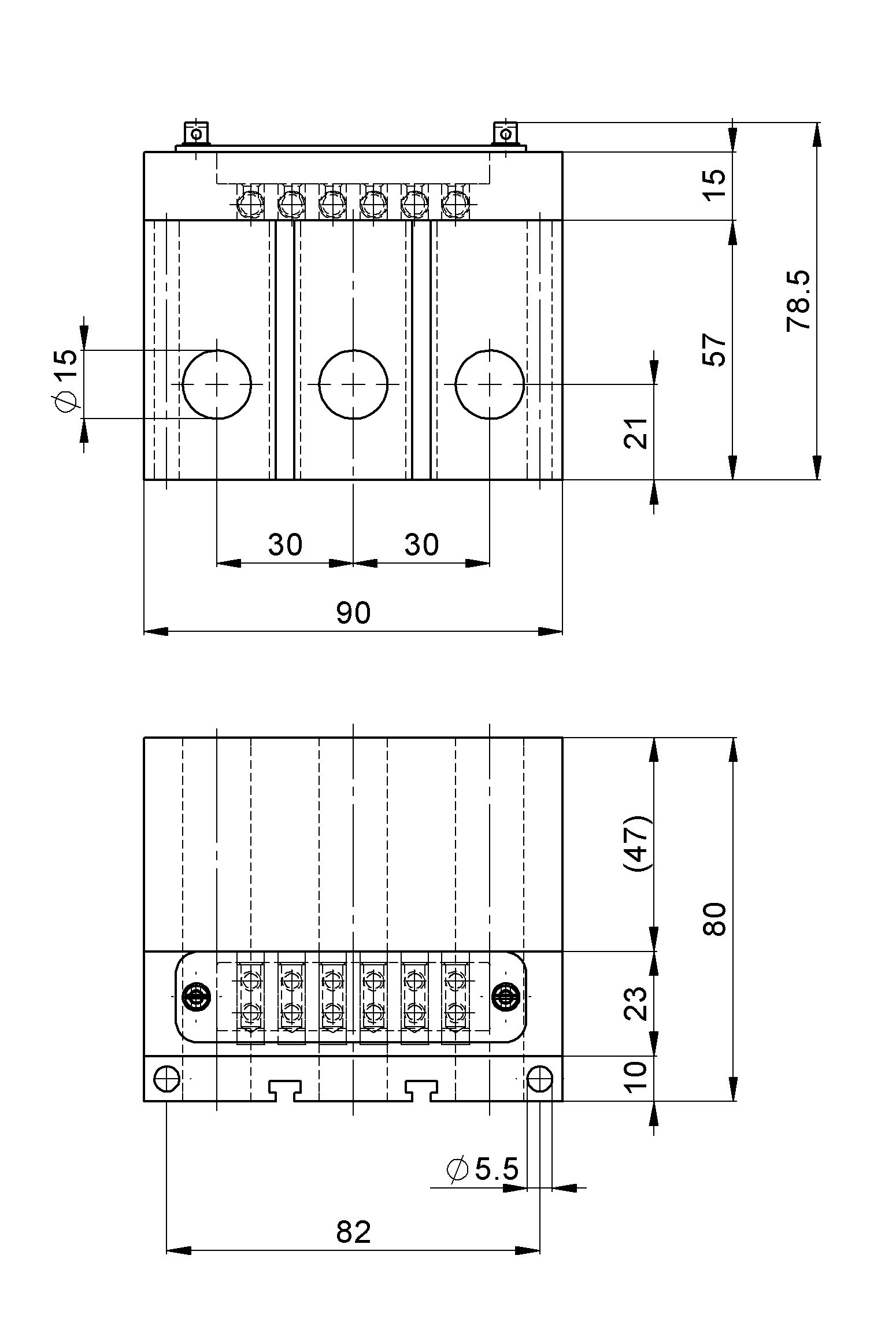

XT2 3-phased

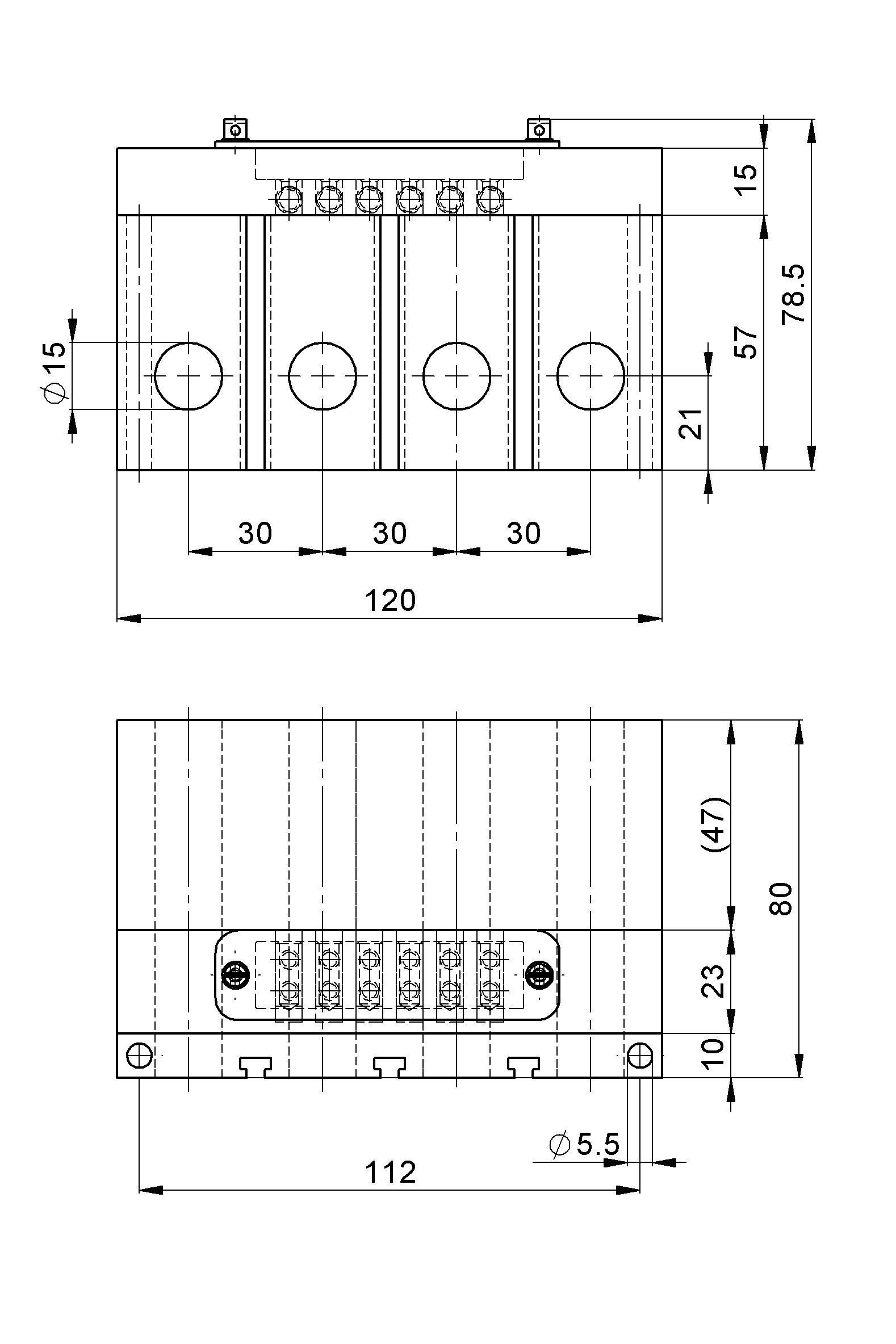

XT2 4-phased

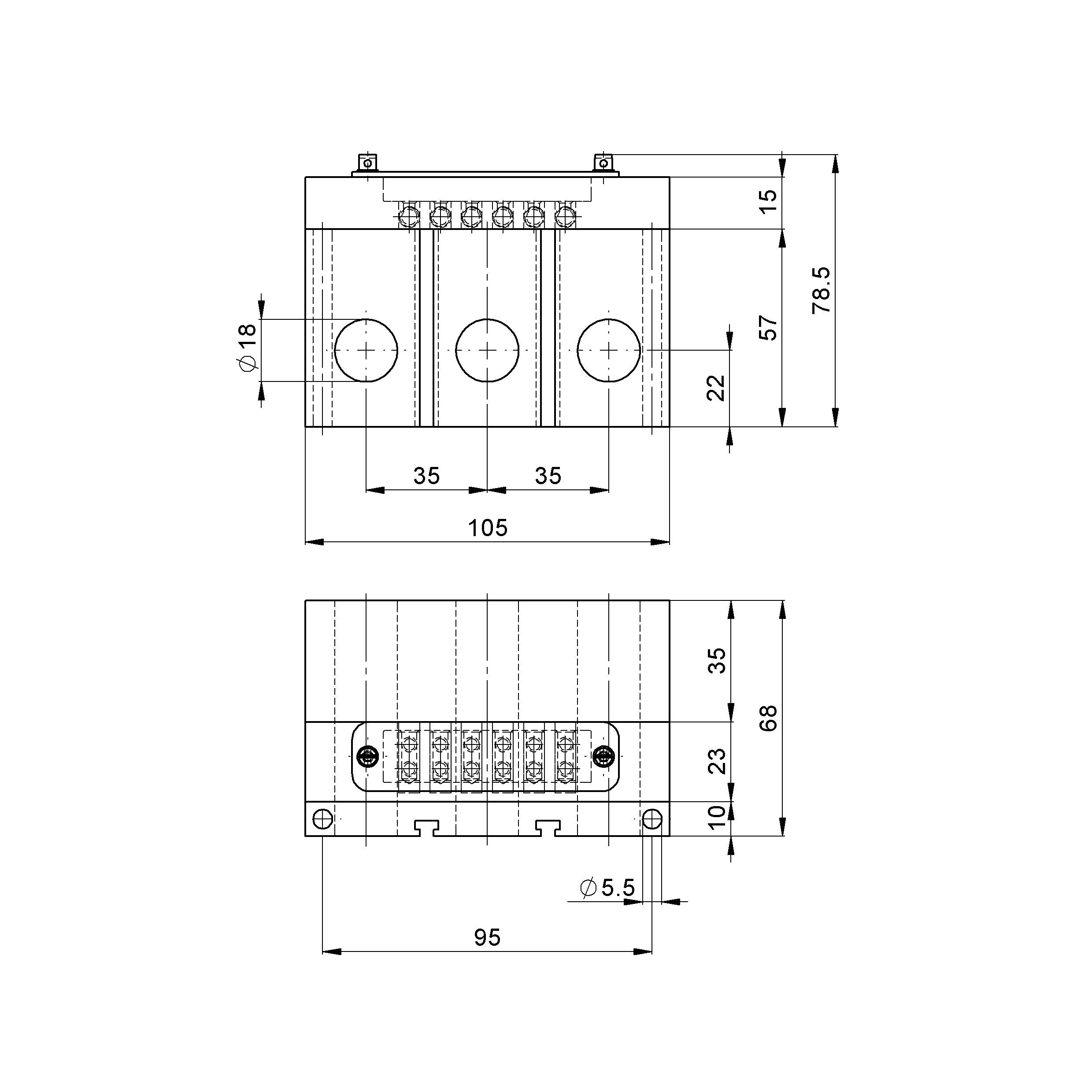

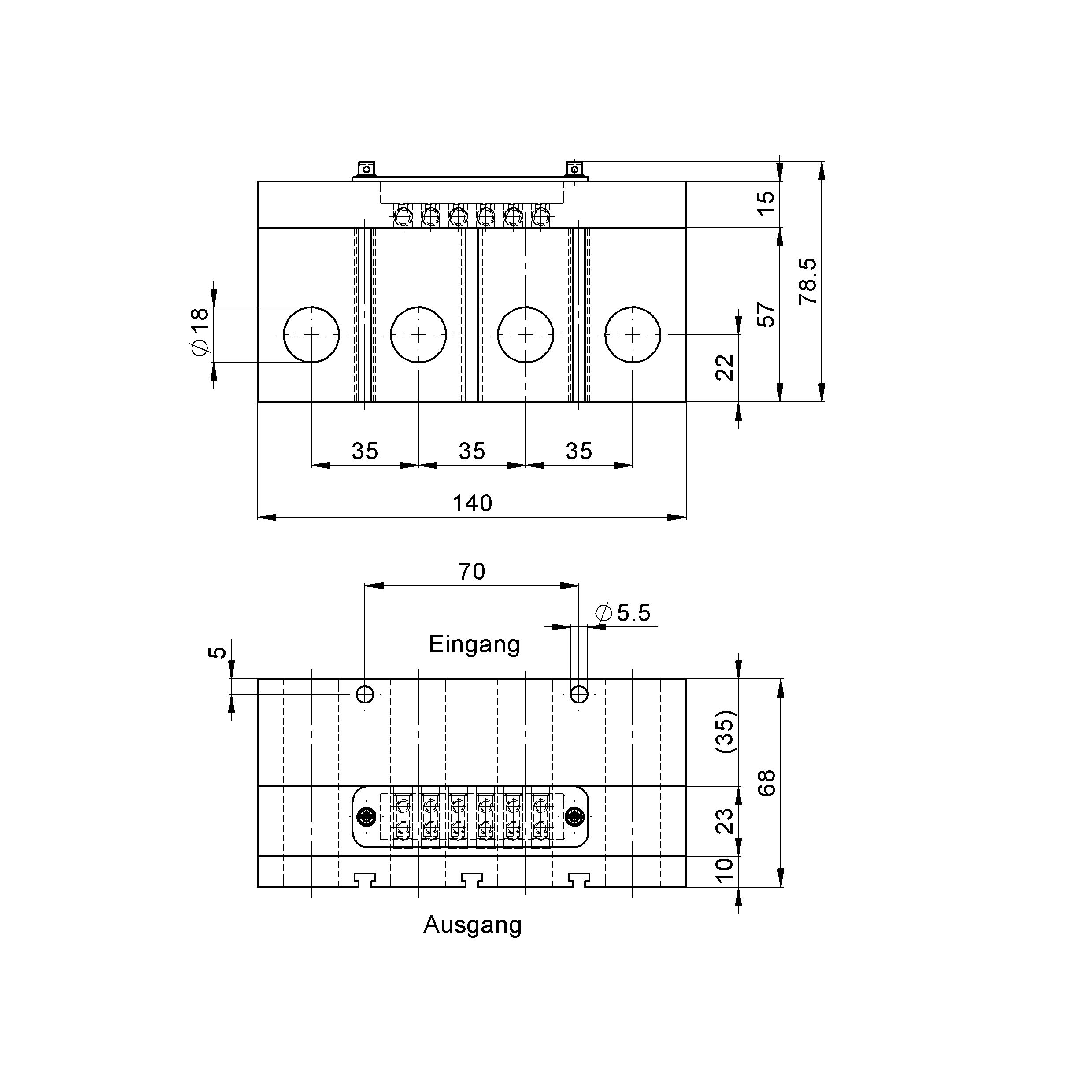

XT4

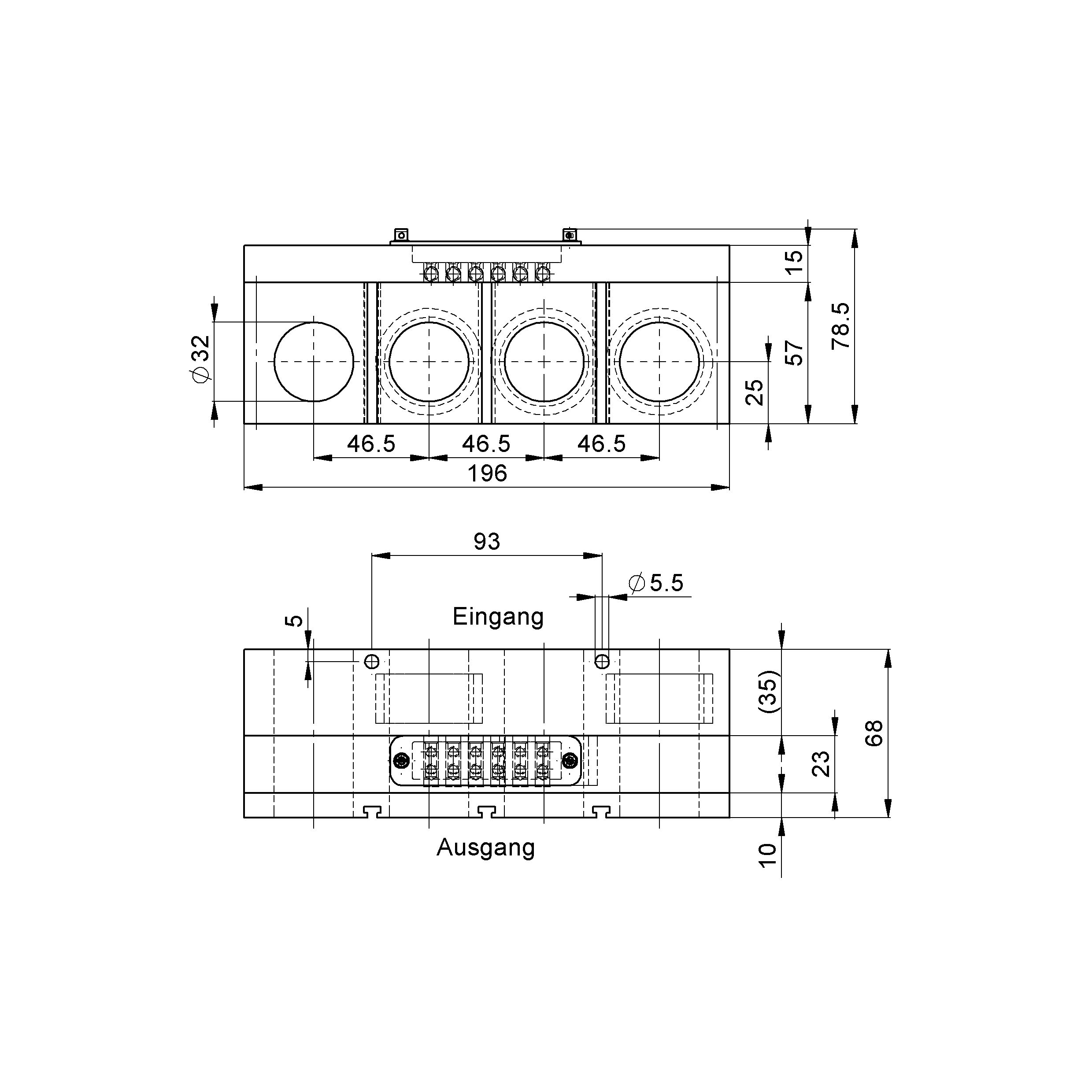

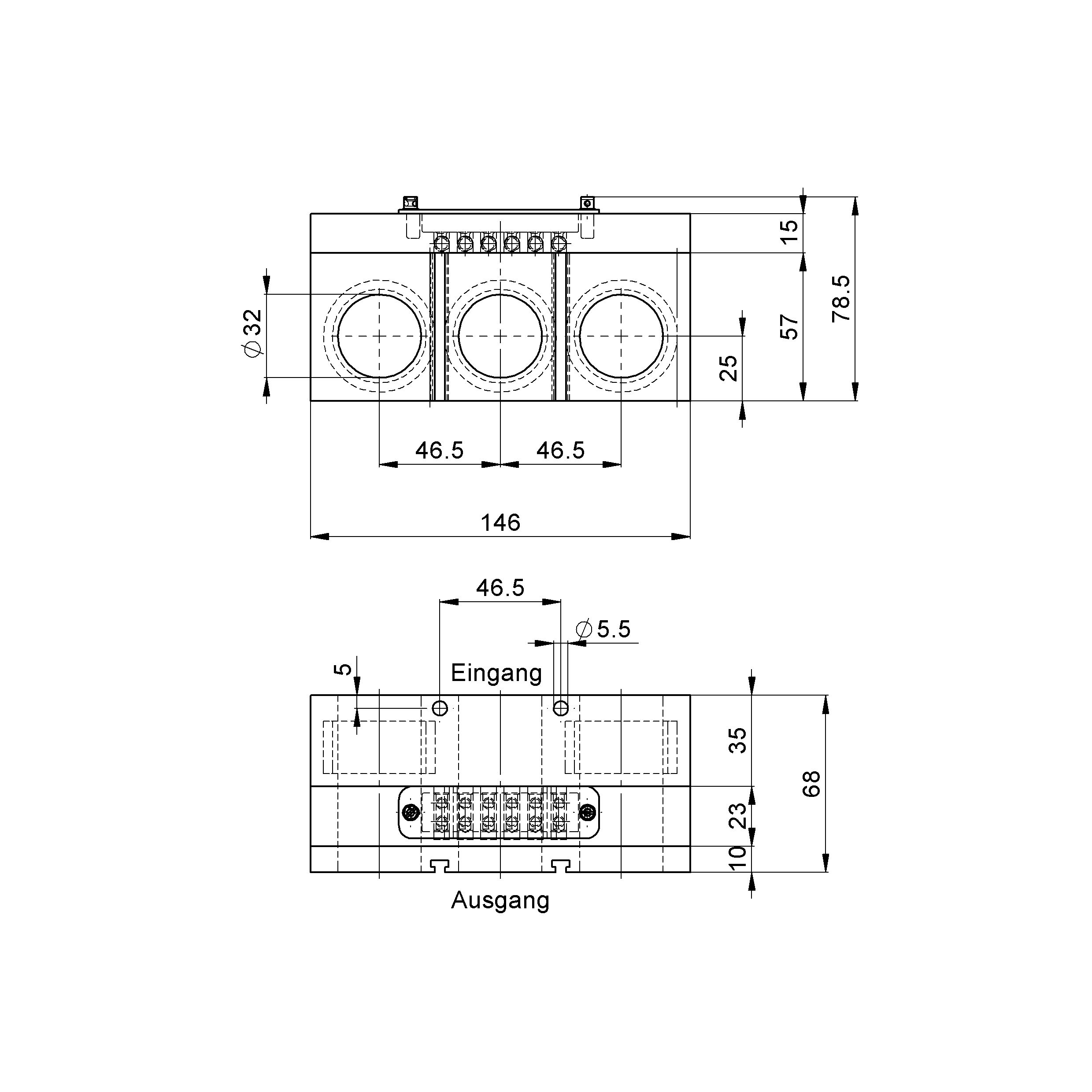

XT5

Technical data

Highest operating voltage 0.72 kV
Test voltage 3 kV
Frequency 50 Hz
Short-time thermal current

60 Ipr 1s
Continuous thermal current

105 % Ipr
Permanent overload capacity 5 %
Accuracy up to cl. 0.5 S
Burden 2 VA
Secondary current 5/1 A
Primary currents XT2 60-100-150 A
Primary currents XT4 200-300 A
Primary currents XT5 300-400-600 A
