SP / SK

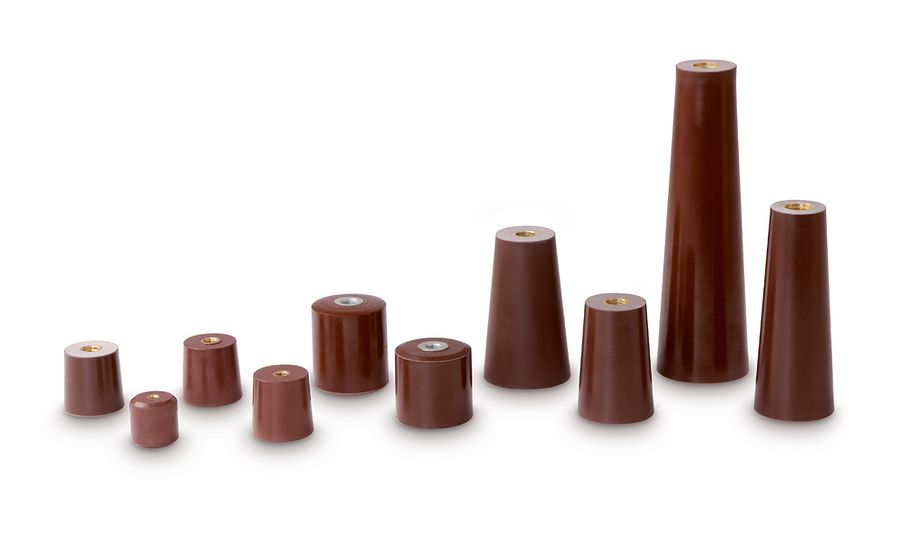

Supporting insulators
- Made from mineral filled Epoxy
- Casted fixing inserts
- Excellent mechanical propertie
- Creepage current resistand
- Highly chemical-resistand
Technical Specifications
Technical Specifications
SP / SK

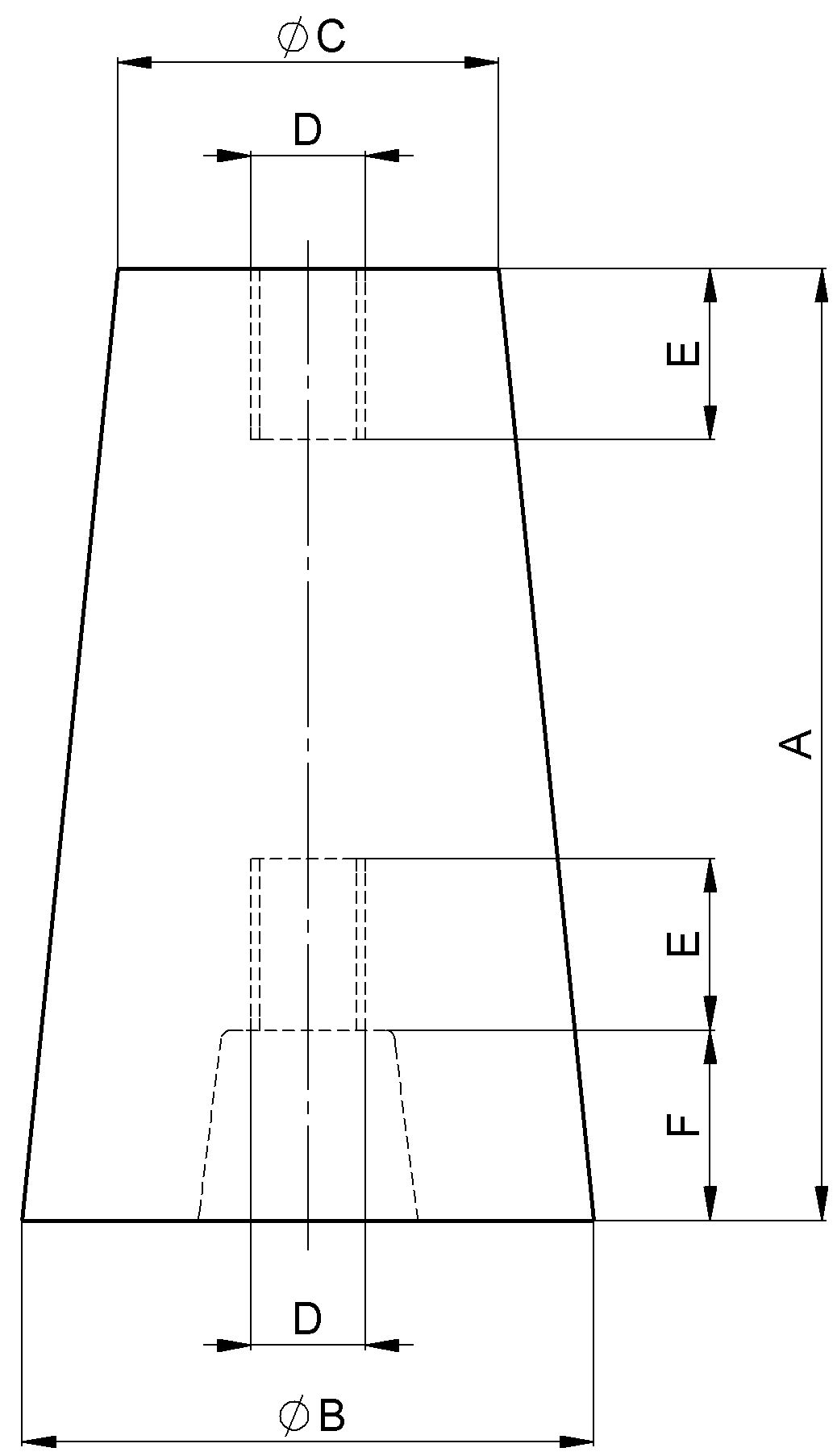

| Order code | A | ø B | ø C | D | E | F | Weight in g |
| SP 01/0 | 30 | 30 | 30 | M6 | 10 | - | 60 |
| SP 01/1 | 40 | 40 | 40 | M8 | 15 | - | 100 |
| SP 01/2 | 40 | 40 | 40 | M10 | 15 | - | 150 |
| SK 01/0 | 30 | 30 | 30 | M6 | 8 | - | 65 |
| SK 01/2 | 40 | 40 | 35 | M10 | 12 | - | 165 |
| SK 03/2 | 75 | 50 | 40 | M12 | 18 | - | 260 |
| SK 07/2 | 100 | 60 | 40 | M12 | 18 | 20 | 390 |
| SK 12/1 | 135 | 50 | 35 | M16 | 20 | 30 | 370 |
| SK 24/1 | 210 | 63 | 40 | M16 | 20 | 30 | 830 |
Technical data
Highest operating voltage kV | Test voltage kV | Lightning impulse withstand voltage kV | Cantilever load N | Order code |
| 1.1 | 10 | - | 2000 | SP 01/0 |
| 1.1 | 10 | - | 5000 | SP 01/1 |
| 1.1 | 10 | - | 5000 | SP 01/2 |
| 1.1 | 10 | - | 3500 | SK 01/0 |
| 1.1 | 10 | - | 7500 | SK 01/2 |
| 3.6 | 21 | 45 | 7500 | SK 03/2 |
| 7.2 | 27 | 60 | 7500 | SK 07/2 |
| 12 | 35 | 75 | 4000 | SK 12/1 |
| 24 | 55 | 125 | 4000 | SK 24/1 |
