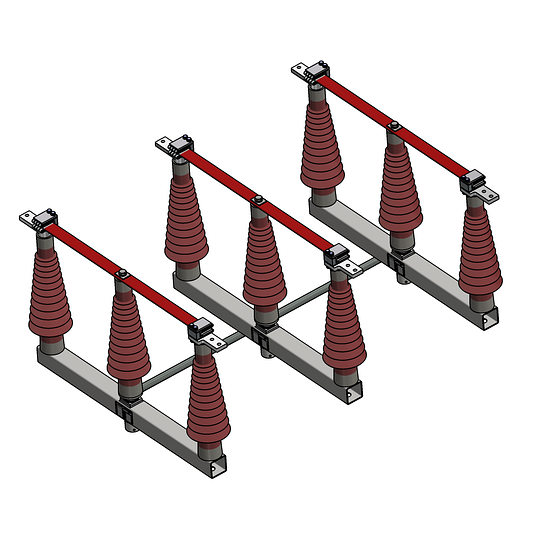

Double Break Disconnector TID
Type TID(E, EE)g 72.5kV
One of the most compact designs available. The TID is solid yet lightweight.
Ready to be installed in all possible positions. We would be happy to develop the right concept for the installation of the disconnector and the connection of the drives in your plant.
Available for rated currents from 400A up to 3'150A and short circuit currents up to 125/50kA, 1s
- Very compact and high safety design for indoor use
- With possibility to integrate one or two earthing switches
- Space and cost saving design

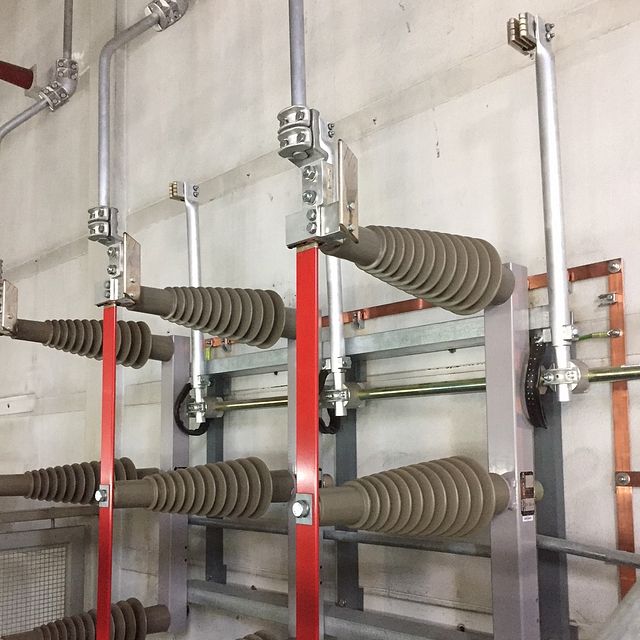

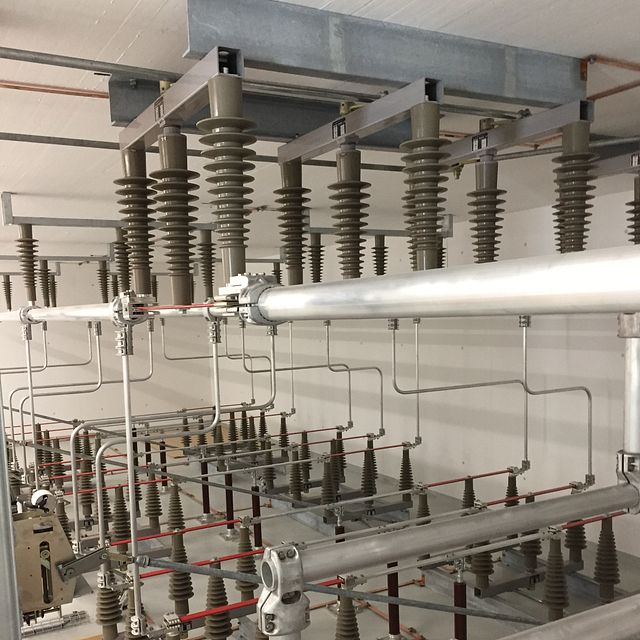

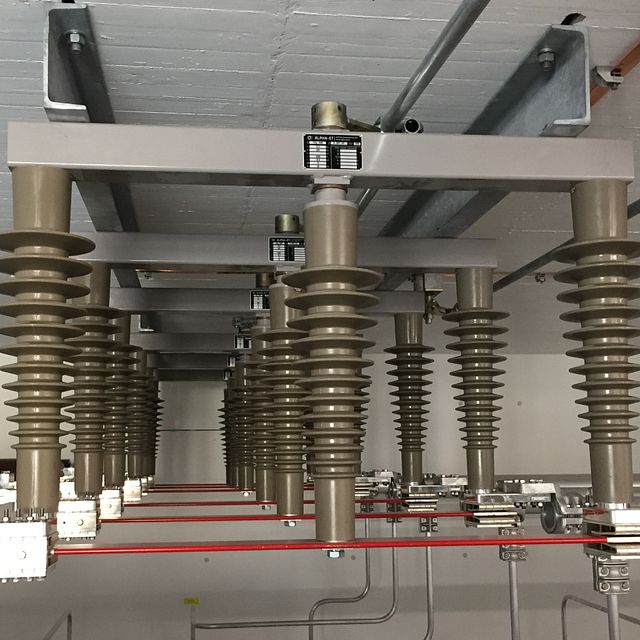

- Mounting on the floor, wall or sealing
- Type tested acc. to IEC 62271-102
- Proven design by leading contractors
- With motor drive type M59 or hand drive type B293
- Short installation and assembly time
- 72.5kV up to 3150A and up to 125/50kA
- Earthing switch type Elg as an option
