Voltage Transformer GC1
Support type voltage transformers GC1 are used in MV outdoor switchgears within the range of 3.6-36 kV. They transform high voltage into standardized values for electric meters, measuring and protection devices.
The support type voltage transformer is designed for the mounting in outdoor medium-voltage cells. The magnetic properties of the iron core are ensured by specific padding and potting in epoxy resin. With this construction the class accuracy remains constant over decades. Compliance with the partial discharge limits according to IEC 61869-1 guarantees safe operation. Primary and secondary connections are made of brass. The protective cover of the secondary terminals is made of aluminium and fulfills IP65 requirements. The mounting position is freely selectable. The voltage transformers are designed according to the common national and international standards. Specific requirements defined by the customer are possible on request.
Specifications and Downloads
Technical Specifications

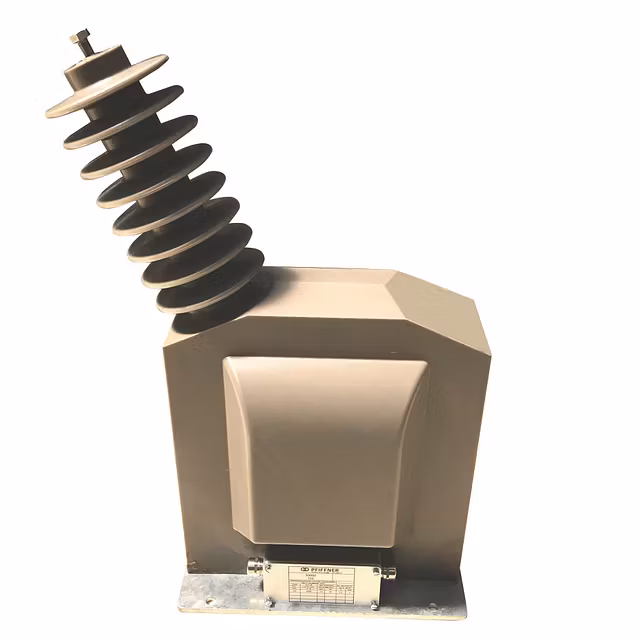

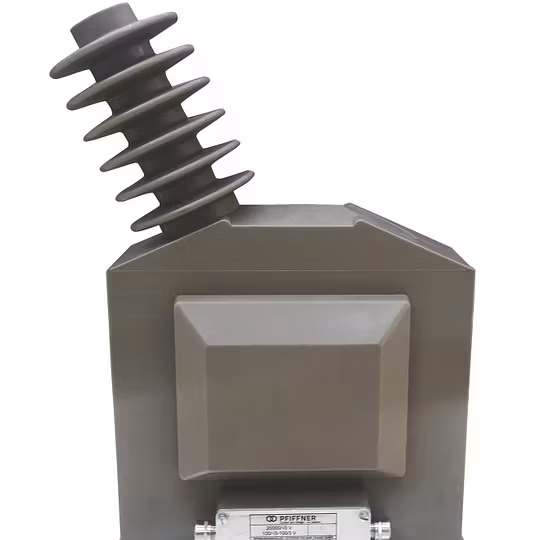

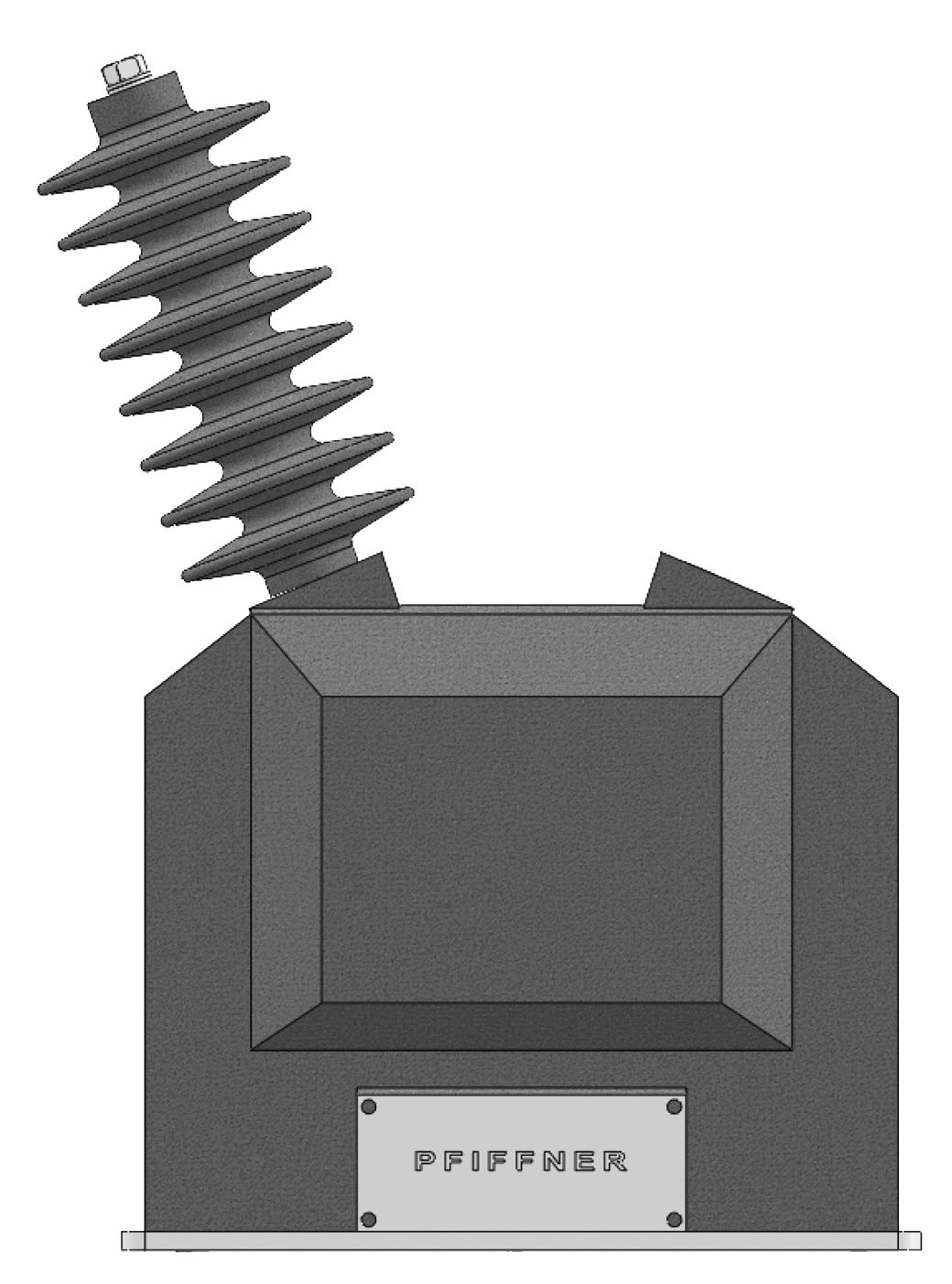

GC1-24

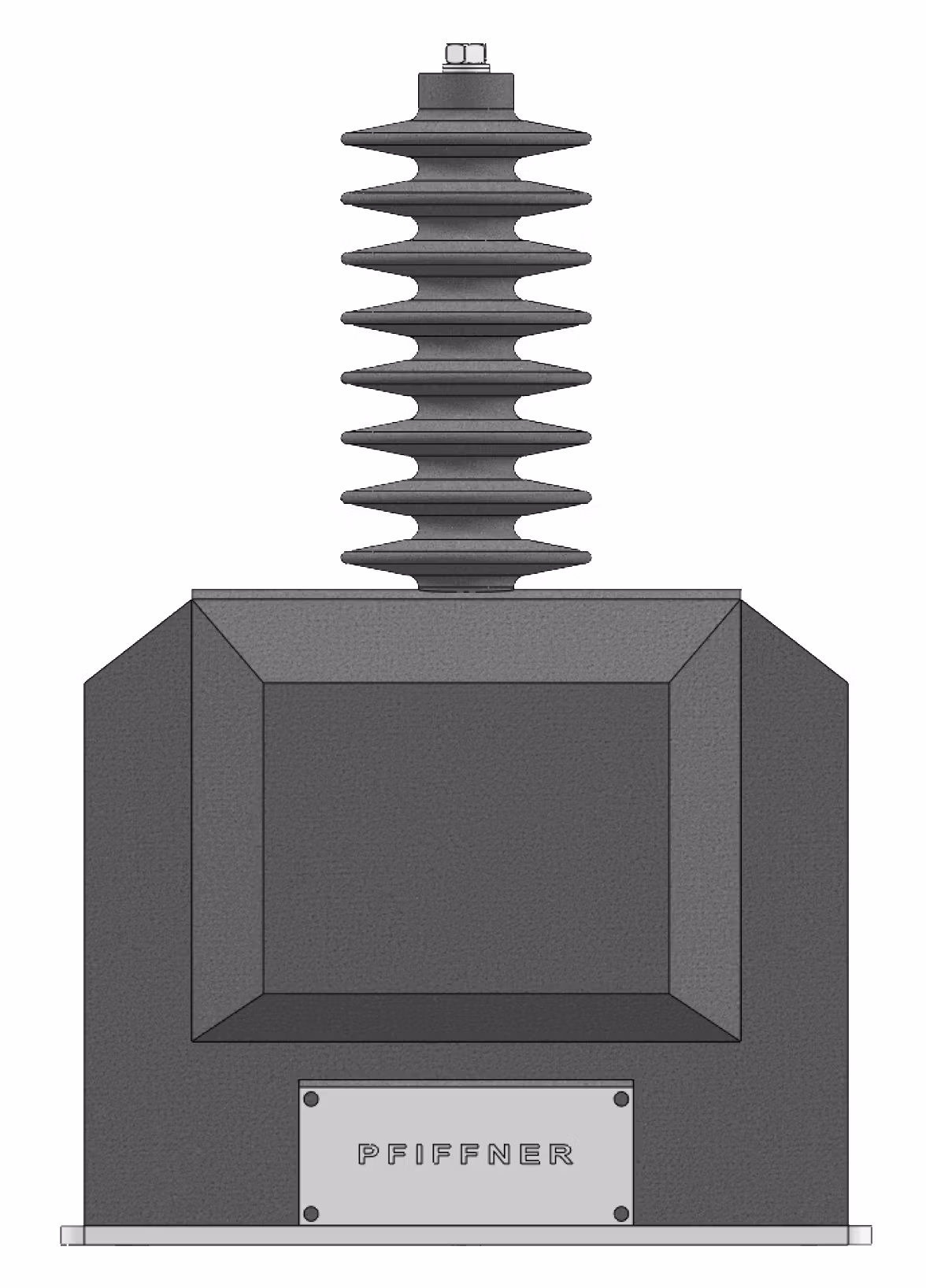

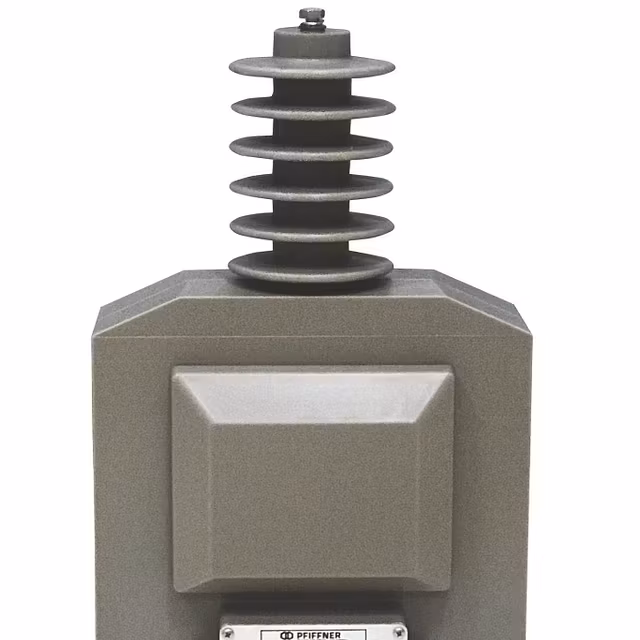

GC1A-24
GC1-36
Technische Spezifikationen
| GC1-12 | GC1-17.5 | GC1-24 | GC1-36 | ||
| Um | kV | 3.6, 7.2, 12 | 3.6, 7.2, 12, 17.5 | 24 | 36 |
| Frequenz | hz | 50-60 | 50-60 | 50-60 | 50-60 |
| Rated primary voltage | kV | 10kV/√3-15kV/√3 | 10kV/√3-17.5kV/√3 | 20kV/√3-24kV/√3 | 30kV/√3-36kV/√3 |
| Rated secondary voltage | V | 100/√3-120/√3 suitable for 220 V winding | |||
Rated output in accuracy class 0.2 0.5 1.0 |
VA VA VA |
40 100 200 |
40 100 200 |
40 100 200 |
40 100 200 |
| Rated voltage factor RVF | 1.2 Un Cont-1.9 Un-8h, 1.5 Un 30s | ||||
| Thermal limit current | A | 6 | 6 | 6 | 9 |
| Creepage distance | mm | 820 | 820 | 820 | 1220 |
| NBI/BIL | kV | 95 | 125 | 150 | 200 |
