Current transformer TP

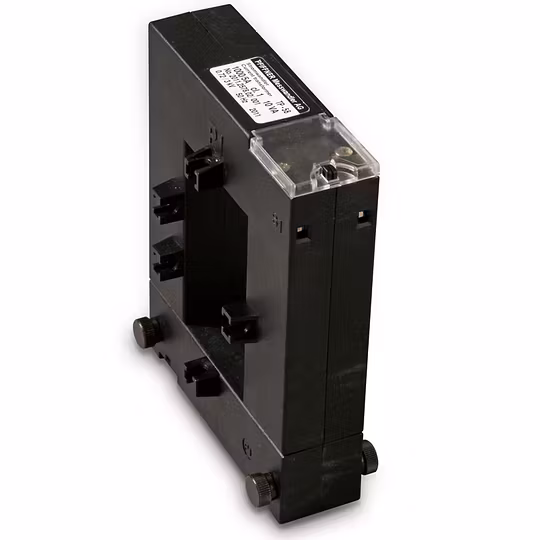

Split core CT



  • Split core current transformer
  • Polycarbonate shell design
  • For indoor application
  • Mounting on the primary bar or with plugged pedestals
  • Standard: IEC/EN 61869-2
Factsheet
Find your local contact

Specifications and Downloads

Technical Specifications

TP

Technical data

Highest operating voltage 0.72 kV
Test voltage 3.0 kV
Frequency 50/60 Hz
Continuous thermal current

100 % Ipr
Short-time thermal current

100 Ipr 1s

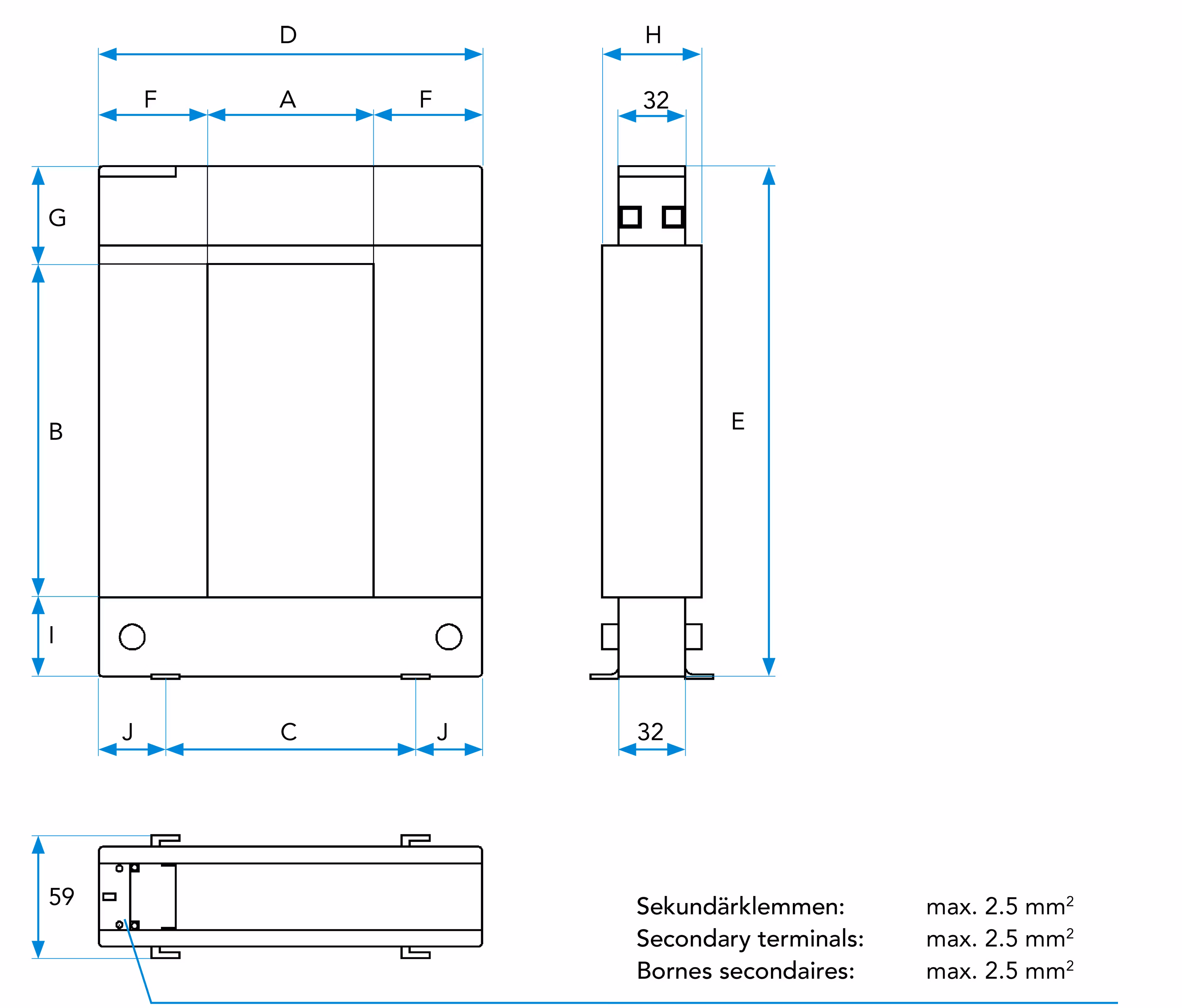

Typ A B C D E F G H I J
TP-23 20 30 52 88 109 34 47 40 32 18
TP-58 50 80 78 114 145 32 32 32 33 18
TP-88 80 80 108 114 145 32 32 32 33 18
TP-812 80 120 108 144 185 32 32 32 33 18
TP-816 80 160 120 184 245 52 47 52 38 32
