Current transformer TGH / TGK

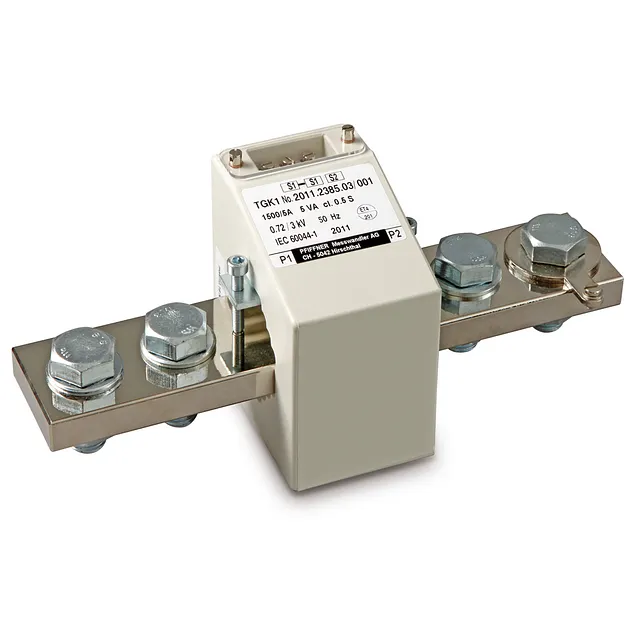

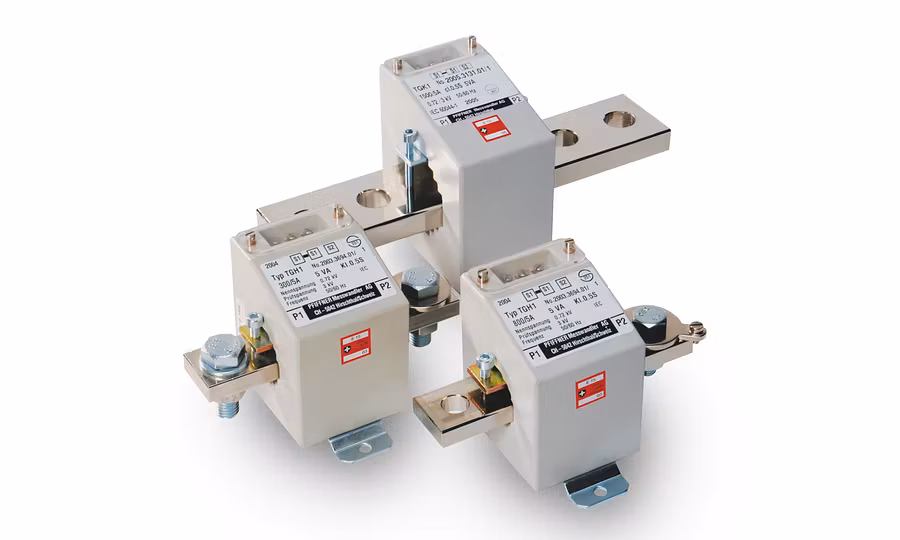

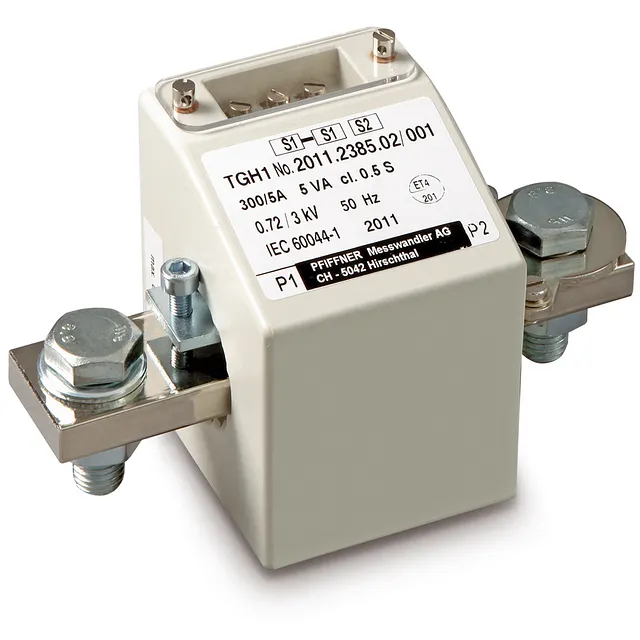

The multi-range current transformer with 5 VA nominal burden and accuracy class 0,5 S is qualified for electronic metering. Due to the extendet measuring range, the whole range from 100 to 1500 A can be covered by 3 courant transformers with the ratios of 300/5, 800/5 and 1500/5 A. These transformers are applied as bus-bar-types and plug-in CT’s as well.

  • Polyurethane cast resin design
  • For highest mechanical and physical demands
  • Large measuring range up to accuracy class 0.2 S
  • Primary bar is dismountable
  • Official calibration possible
Factsheet
Find your local contact

Highlights

Official calibration

Official calibration possible according to the ordinance of the EJPD on measuring instruments for electrical energy and power.

Specifications and Downloads

Technical Specifications

TGH1

TGK1

Technical data

Highest operating voltage 0.72 kV
Test voltage 3.0 kV
Frequency 50/60 Hz
Continuous thermal current

120 % Ipr
Short-time thermal current

60 Ipr 1s
