PCD 122

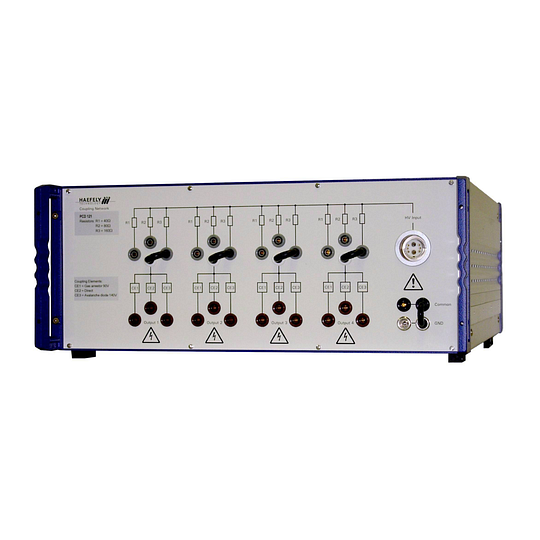

The PCD 122 is used for coupling of 10/700μs impulses up to 6.6kV peak onto unshielded symmetrical data and signal lines according IEC/EN and ITU standards. Up to 2 pairs / 4 wires can be tested simultaneously.
To obtain maximum flexibility only coupling elements are included in the PCD 122. Decoupling circuits, which depends on the EUT to be tested, can be placed separately in the test setup. Manual coupling path switching for common mode (longitudinal, line to earth) and for differential mode (transverse mode, line to line) testing. Default coupling elements are gas arrestors and breakdown avalanche diodes. The coupling elements can be selected easily. The direct coupling output allows the customer to use his own coupling elements.
Features
10 / 700 µs impulse
Serial resistors included
Up to 4 wires can be tested
Signal Bandwidth up to > 10 MHz
Low capacitive load on the EUT lines
Manual coupling path selection
