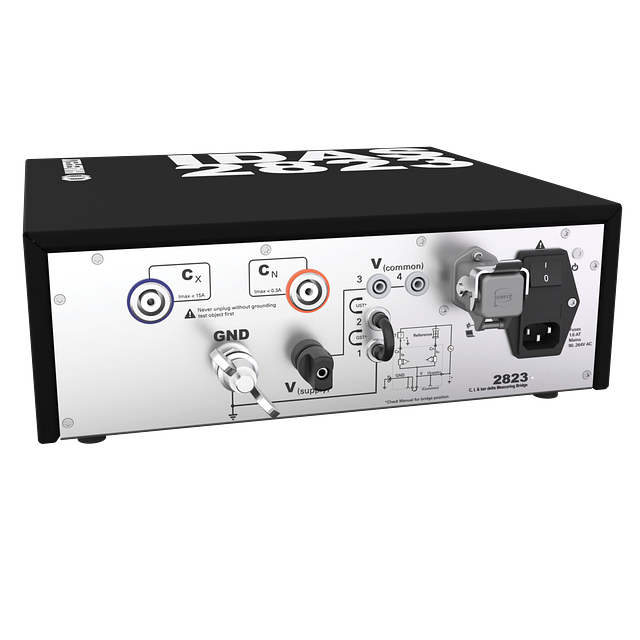

IDAS 2823
The IDAS 2823 High Precision tan d / power factor measuring instrument is designed for measurement of very low dielectric losses of high-voltage apparatus.
The IDAS 2823 belongs to our new generation of measuring instruments, and is a perfect combination of over 50 years’ experience in this field and state-of-the-art technologies. The use of an optically decoupled connection allows complete galvanic isolation between control room and test field and guarantees highest safety level of test personnel. It is capable of analyzing capacitive and inductive loads with outstanding accuracy and stability.
Features
- Accuracies - Capacitance: 0.1 % and tan d: 5 x 10-5.
- Compact, reliable and EMC hardened design, IP50 Rated
- Optically decoupled from computer
- Up to 15A input current with auto-range
- Extremely low input impedance
- Industrial Connectors for measuring and fiber optic cables
- Mains Powered
Specifications and Downloads
Images
Videos
HAEFELY - Pioneers in Tan d / power factor & capacitance measuring bridges
