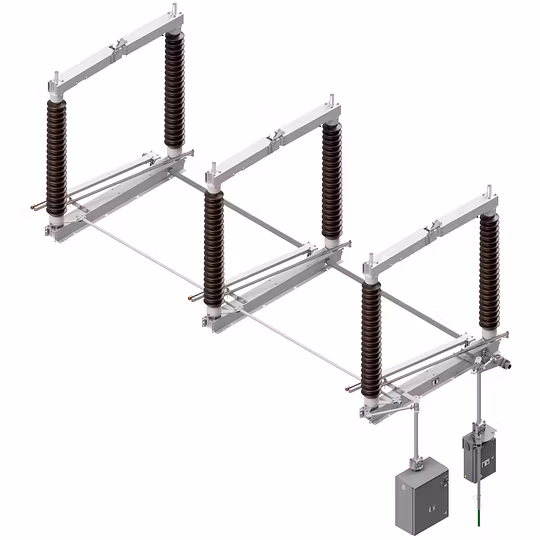

Center Break Disconnector CBD
Type CBD (E, EE) 72.5kV – 550kV
The reliable all-rounder. Flexible in use, whether standing, hanging or vertically mounted, our Center Break Disconnector is adapted to your needs and can be equipped with a comprehensive set of additional functions and features.
Available from 1’600A up to 4’000A and short circuit currents up to 160/63kA, 1s
- Possibility to integrate one or two earthing switches
- Operation with motor or hand drive

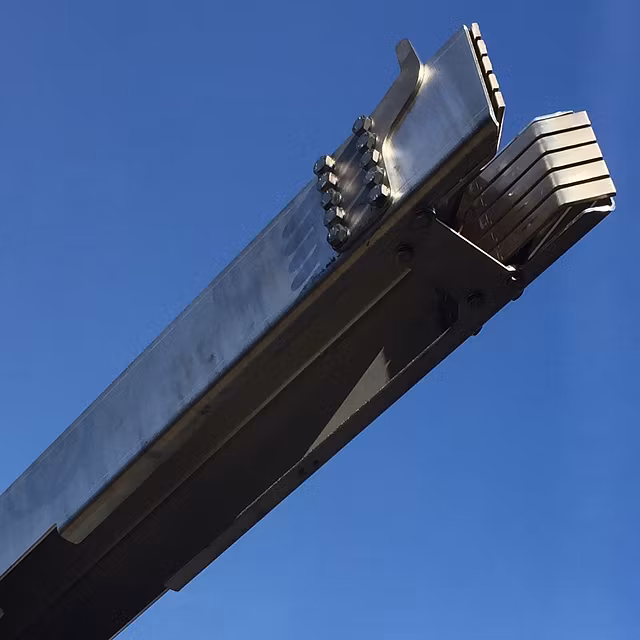

- Reduced Life Cycle Cost due to optional maintenance free contact systems
- Short installation and assembly time
- Type tested acc. to IEC 62271-102
- 50Hz and 60Hz
- Earthing switch type EF as stand-alone version
