AKV 9360-SEK

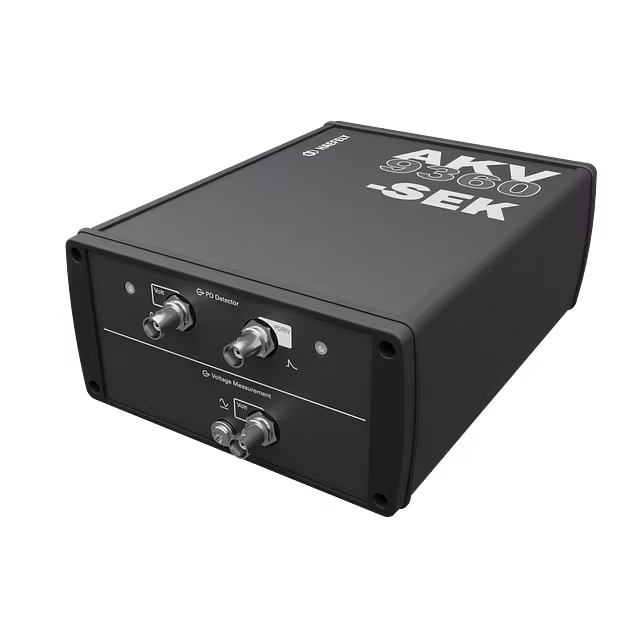

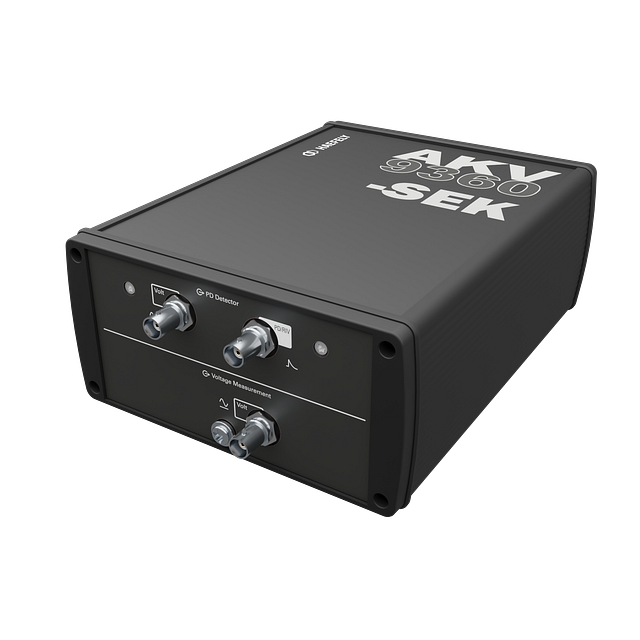

AKV 9360-SEK provides combination of the measuring impedance and calibrated voltage secondary measuring unit (SEK).
The AKV 9360 is a measuring impedance (sometimes also called coupling device or quadripole). It is a fully passive and optimized for use with the DDX 916x series of partial discharge detectors.
The AKV 9360 splits and condition the partial discharge high-frequency signal and HV test voltage signal (power frequency). It serves as well as a surge and over-voltage protection.

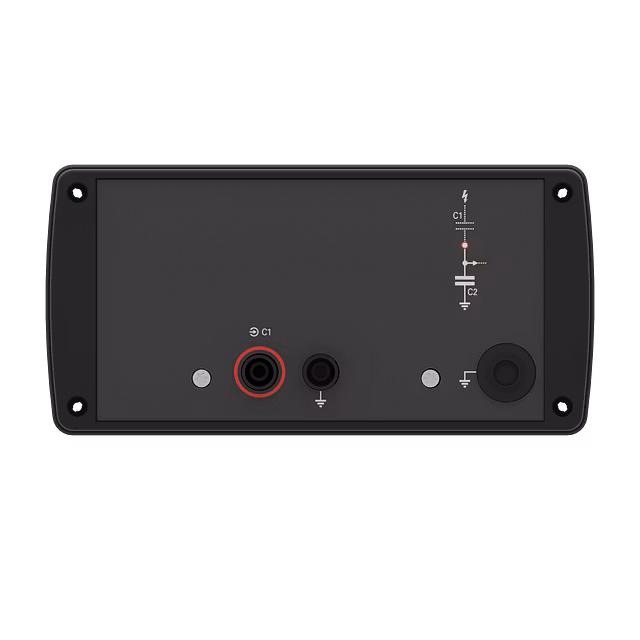

It is equipped with an internal voltage divider and a dedicated 4 mm output connector for an external low-arm device.
It fulfils the NEMA and CISPR requirements for the RIV measurement. It can be optionally equipped with a secondary low-arm resistance allowing measuring the DC voltage (AKV 9360DC).
Features
- Measuring impedance (AKV) + secondary voltage measuring unit (SEK) in one box
- Passive measuring impedance

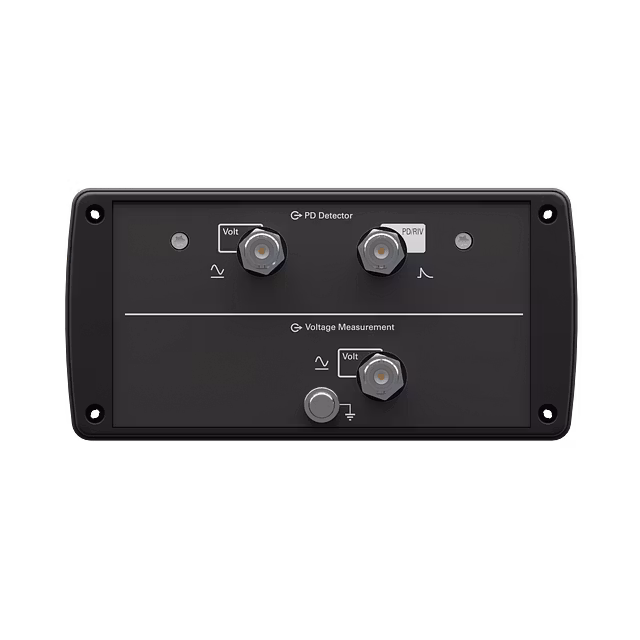

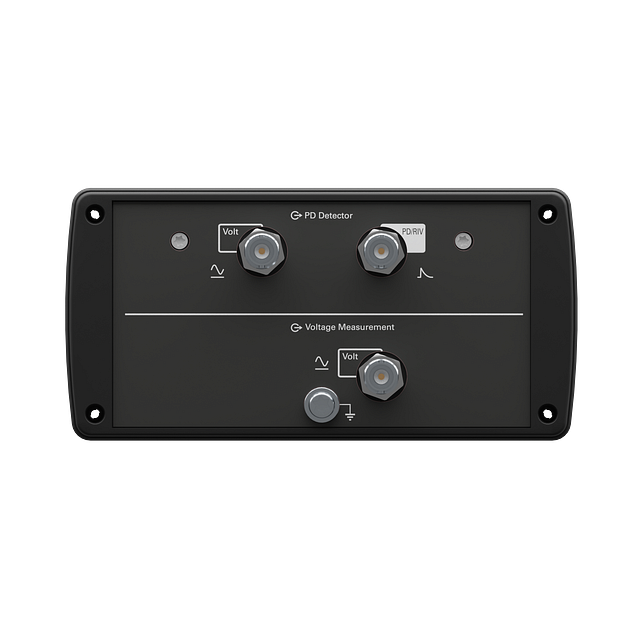

- Compact design, standard BNC outputs and grounded/floating switch feature
- Internal voltage divider
- High input current
- Built in overvoltage protection
