9241 Series
The divider is sturdy and rugged and for indoor operation. The insulator is a reinforced epoxy fiberglass tube filled with oil. It consists of a capacitor in parallel with a resistor. The 9241 series provides an improved and universal base frame, optimized for the DDX 9161.

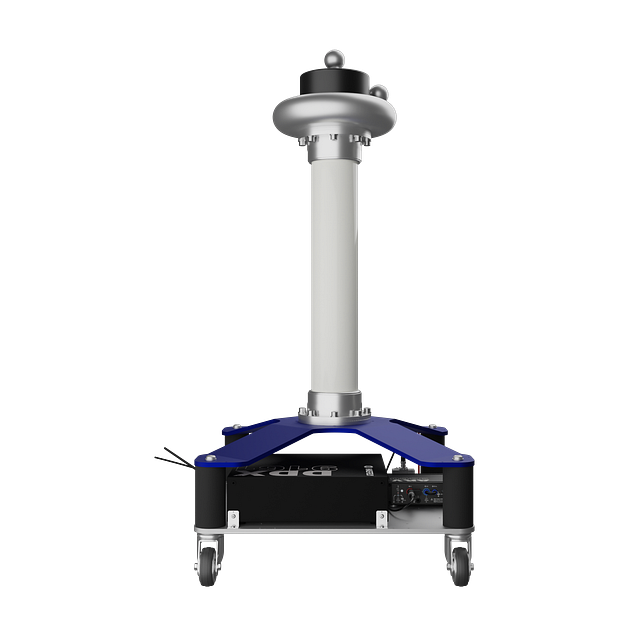

Decouples partial discharge signals from device under test (DUT) when used with an optional measuring impedance (AKV) or with PD detector DDX 9160/9161 with integrated internal AKV.
Measures AC/DC voltages in the industrial frequency range (when used with an optional secondary unit (SEK)).
Attenuates interferences coming from the HV side and improving signal to noise ratio (SNR) of the PD measuring circuit (together with an optional HV filter).

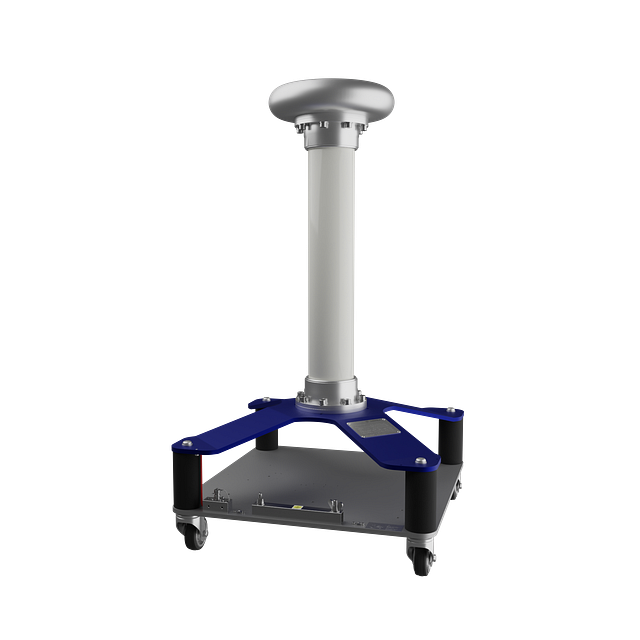

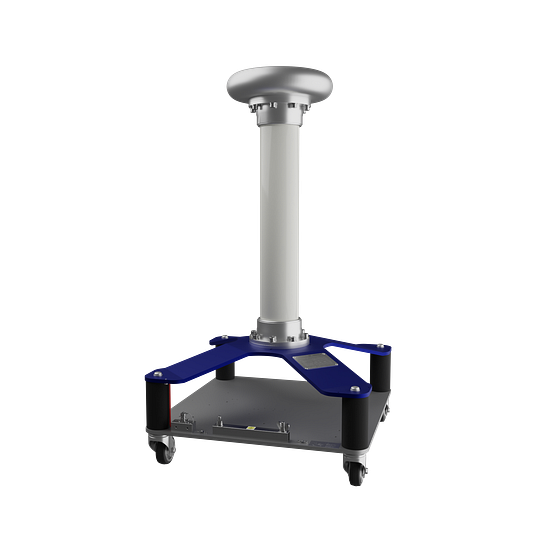

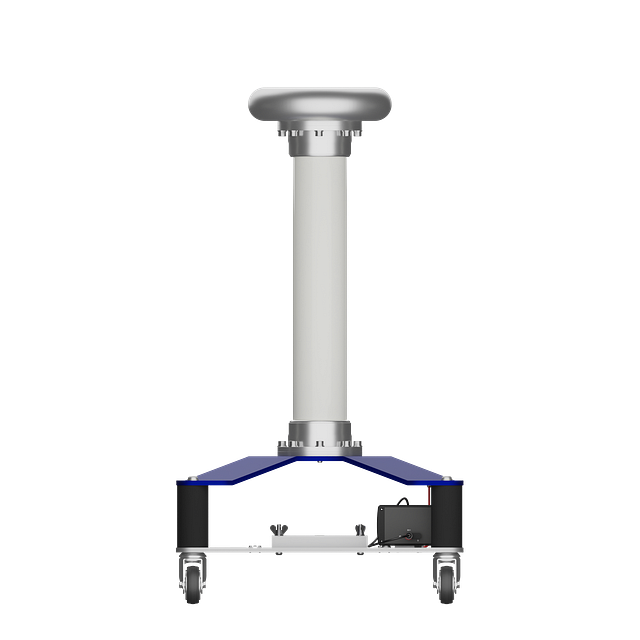

The standard design includes a base frame with swivel castors for mobility, termination box with BNC connector including surge protection and an appropriate upper toroid.
Features
- Base frame with heavy duty swivel casters
- Modular design

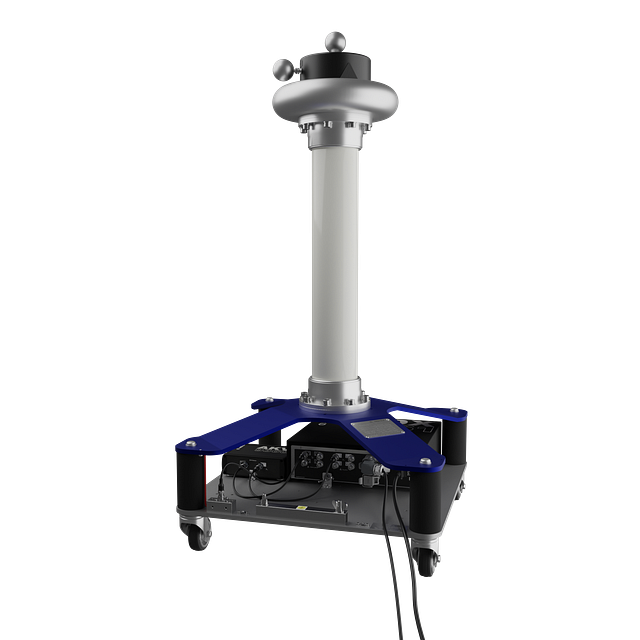

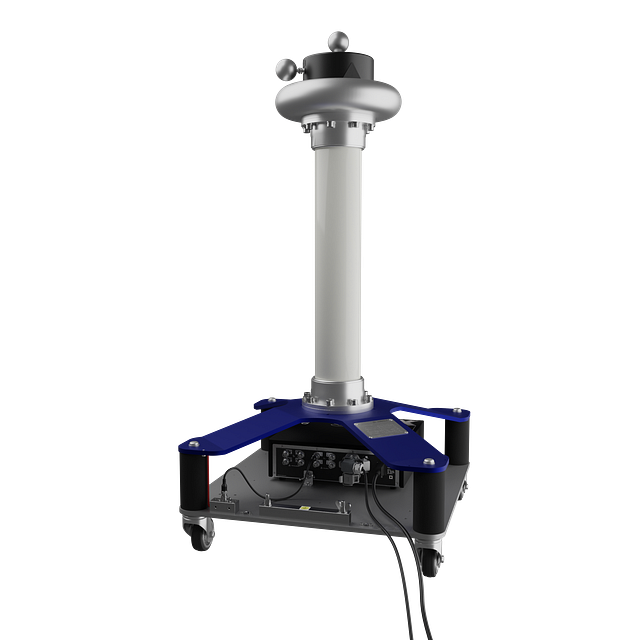

- Measuring impedance for PD measurement (optional)

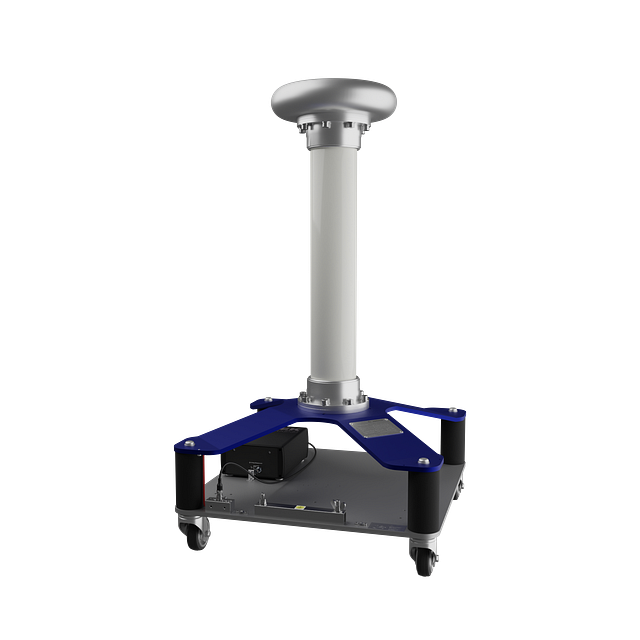

- Secondary Unit for AC/DC measurement (optional)

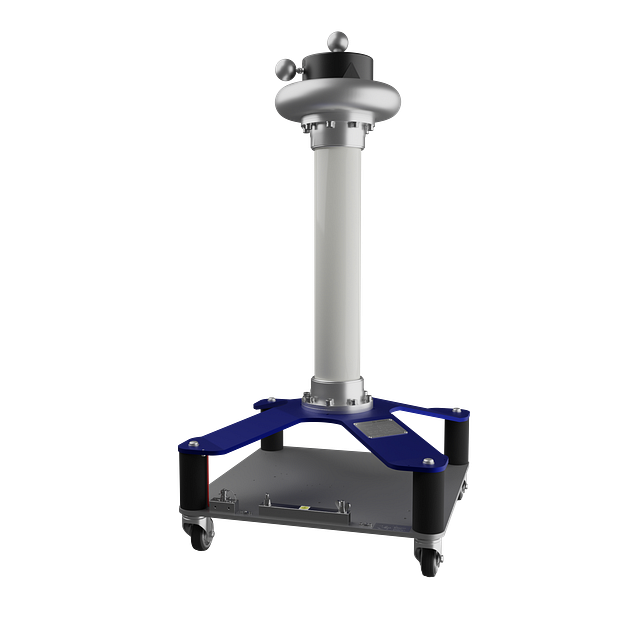

- HV filter (optional)
- High stability in capacitance and resistance values
- Guaranteed optimal frequency bandwidth
- PD free (see the Datasheet for full specification)
