2772 VITAS

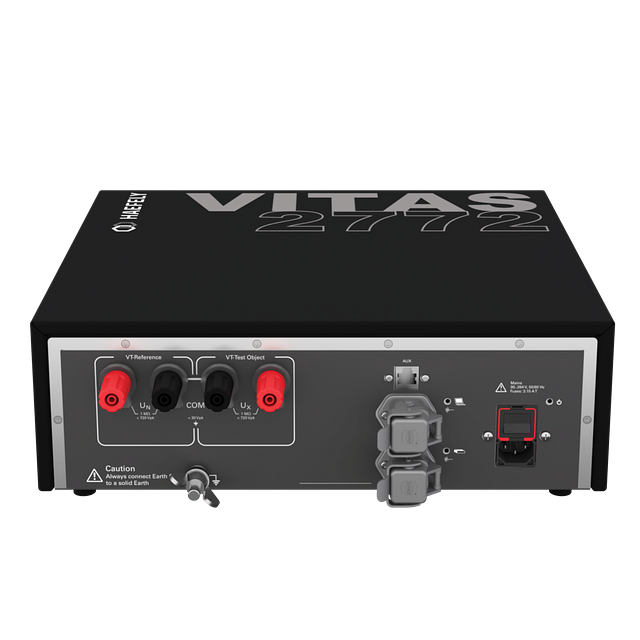

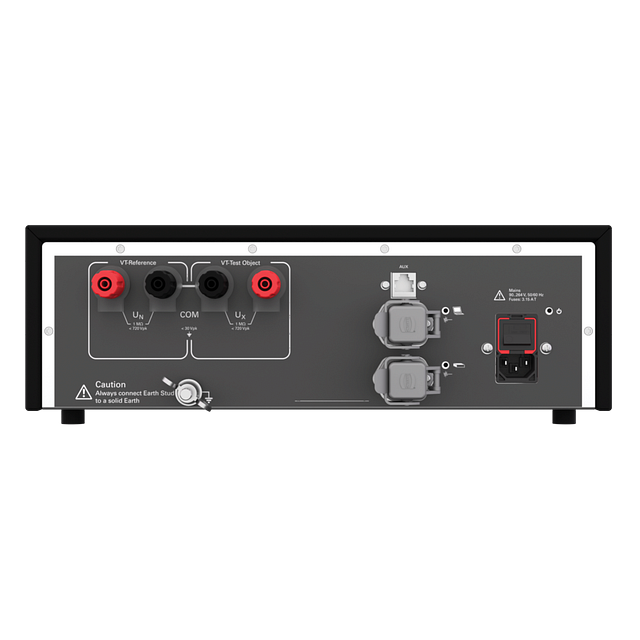

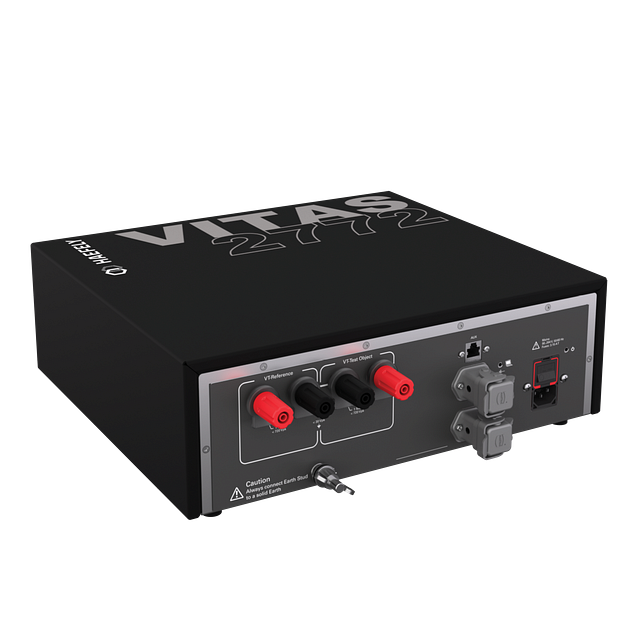

The VITAS 2772 is a fully digital voltage instrument transformer (VT) measuring bridge. It incorporates the knowledge of more than 70 years on this field, together with state of the art technologies to exceed industry requirements.
The VITAS 2772 measures ratio error, phase error and voltage excitation according to the latest IEC and ANSI standards.
Test objects and nominal transformer with large differences in ratio can be measured with full accuracy, reducing the number of reconnections while testing.
The VITAS 2772 specified accuracy is excitation or environmental conditions (temperature or humidity) independent and guarantees high accurate results under any circumstance.
Features
- High accuracy temperature or excitation independent
- Extremely large k factor (difference between nominal transformer and test object ratios)
- Computer with Haefely CaMS user interface
- Automatic error limits according standards
- Fast stabilization time
- Controls Haefely electronic burdens
- Optically decoupled from computer by fiber optic data connection
- Scope function – waveshapes of the measured signals shown in real time
- Datalogger – readings can be collected and represented graphically to see deviations
- Compact, reliable, and EMC hardened design, IP50
