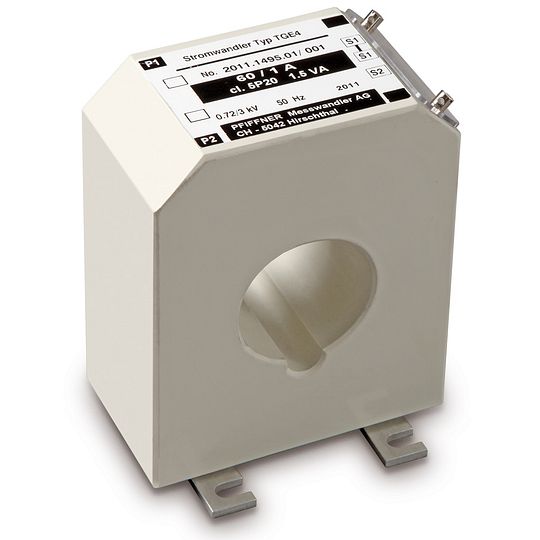

Current transformer TGE 4

Cable CT

  • Cable current transformer for protection purposes
  • Moulded in Polyurethane
  • Ration and inner dimesion according to customer specification
  • Standard: IEC/EN 61869-2
  • Official calibration possible
Factsheet
Find your local contact

Highlights

Official calibration

Official calibration possible according to the ordinance of the EJPD on measuring instruments for electrical energy and power.

Specifications and Downloads

Technical Specifications

TGE4

Technical data

Highest operating voltage 0.72 kV
Test voltage 3.0 kV
Frequency 50/60 Hz
Secondary current 1 A
Continuous thermal current

120 % Ipr
Short-time thermal current

60 Ipr 1s
