ONYX 30

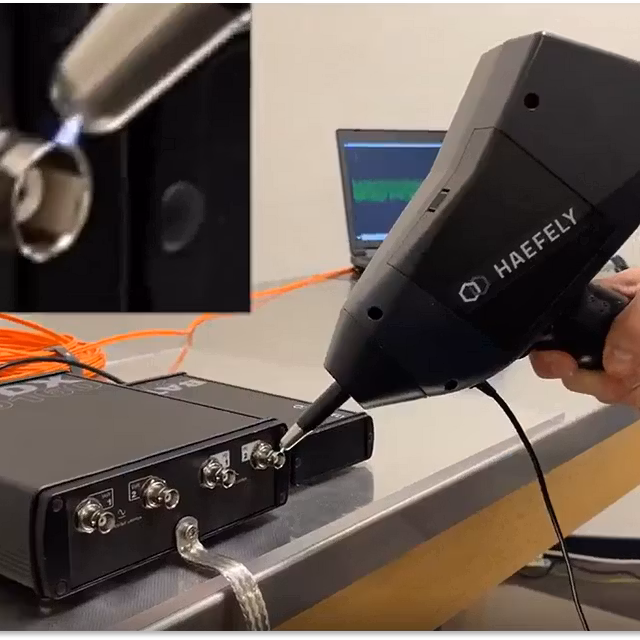

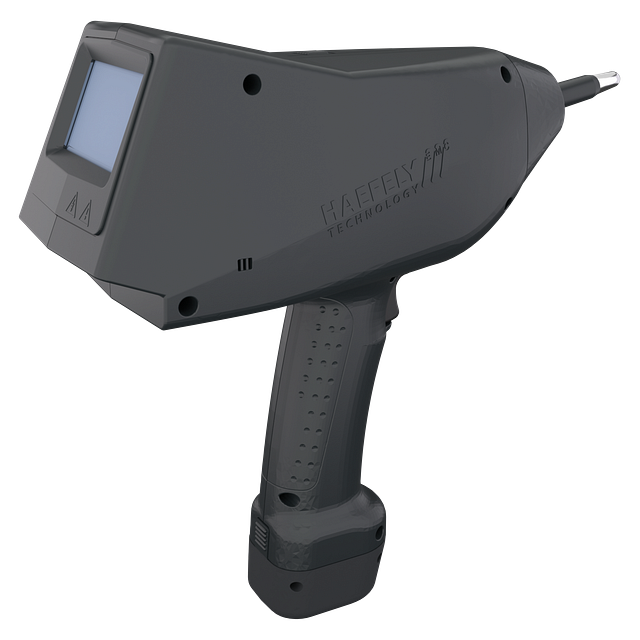

The ONYX is a state of the art electrostatic discharge test system available in 16 kV or 30 kV versions. The ONYX 30  is the most ergonomic 30 kV ESD Gun without an additional base control unit that can be battery or mains operated.

Onix 30 - 32 kV Electrostatic discharge test system (ESD)

The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the ONYX in all types of test sites.

Factsheet
Find your local contact

Features

  • User defined ‘smart key’ function
  • Touch screen interface
  • Predefined tests according to standards
  • Multilingual
  • Define, store and load tests
  • Ergonomic all-in-one design (no base unit) and ONYX balancer (optional)
  • Automatic polarity switching
  • User changeable RC networks
  • Remote control software
  • Battery or mains operation, long battery life
