Current transformer MG

The MG has been designed for NSX circuit breaker.

  • Current transformer for compact circuit-breakers
  • Three-phase design
  • Moulded in Polyurethane
  • Minimum space requirement
  • Easy installation
  • Standard: IEC/EN 61869-2
  • Official calibration possible
Factsheet
Find your local contact

Highlights

SAS Swiss Accreditation

Official calibration

Official calibration possible according to the ordinance of the EJPD on measuring instruments for electrical energy and power.

PFIFFNER block CT advantage

  • Compact solutions which wouldn't be possible with standard products
  • All parameters are maintained despite the compact design
  • Significant reduction of the total costs

Specifications and Downloads

Technical Specifications

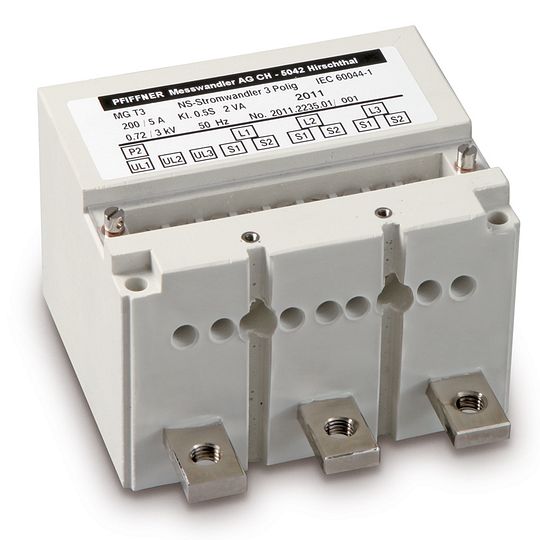

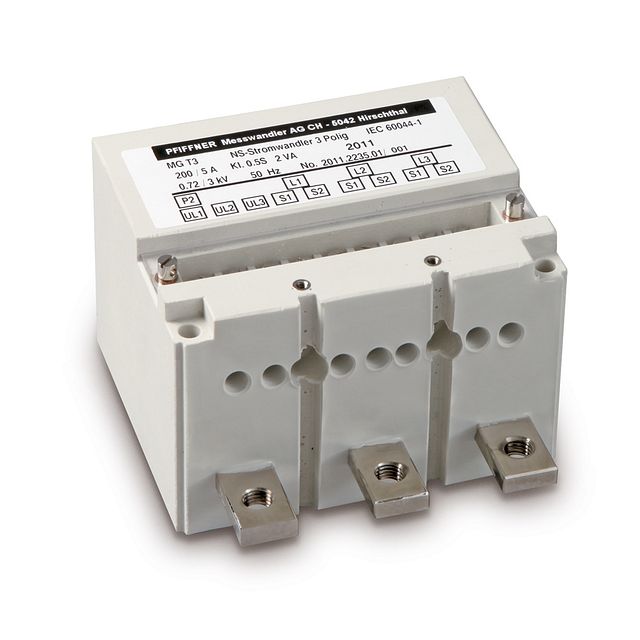

MG T3 3-phased

MG T3 4-phased

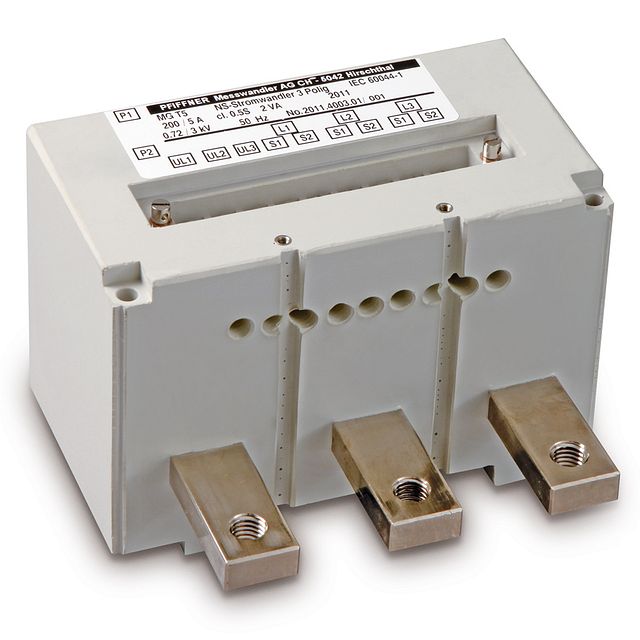

MG T5 3-phased

MG T5 4-phased

Technical data

Highest operating voltage 0.72 kV
Test voltage 3.0 kV
Frequency 50/60 Hz
Secondary current 5 or 1 A
Continuous thermal current

105 % Ipr
Short-time thermal current

60 Ipr 1s



Back to overview

Related Products

Current transformer TEMBREAK

Designed for TEMBREAK circuit breaker

Current transformer TMAX

Designed for TMAX circuit breaker.

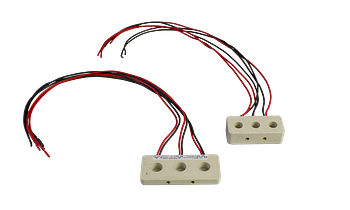

Current transformer VARIO

Designed for VARIO Line circuit breaker

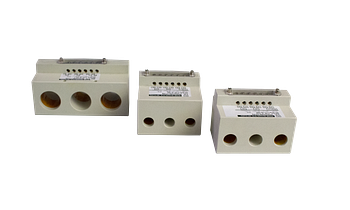

Current transformer XT
