Current Transformer BD

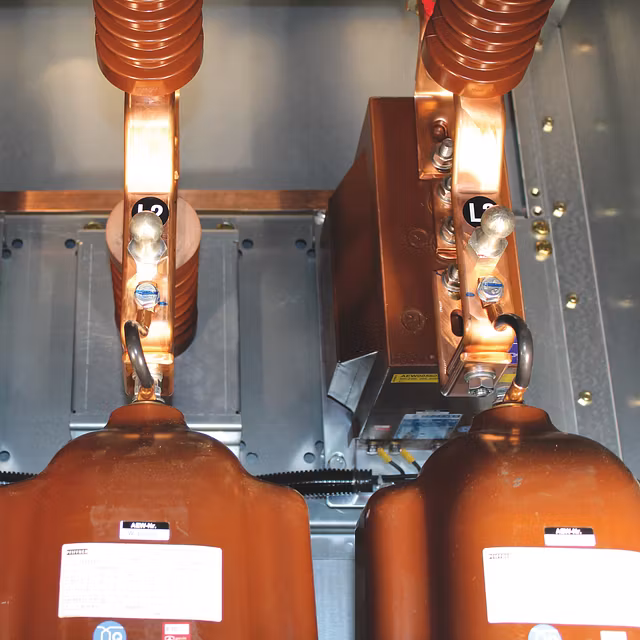

Support type current transformers type BD are used to fit in standard MV cabinets within the 12-72 kV range. They transform high current into standardised values for meters, measuring and protection devices.

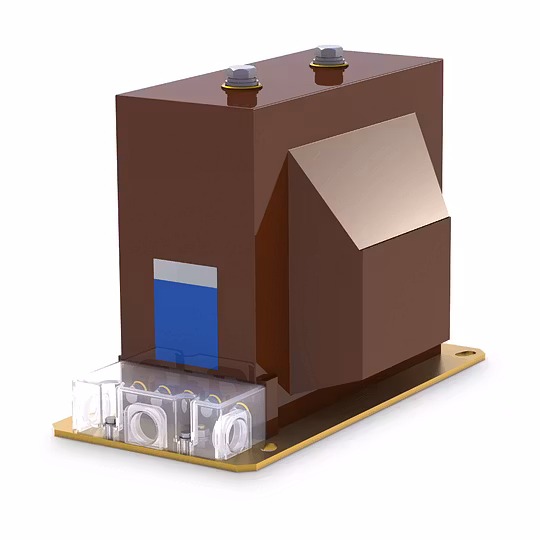

The support voltage transformer in dry block construction is designed for the mounting in air-insulated medium-voltage cells. A specific core padding and the complete casting of the entire active part in epoxy resin ensure the magnetic properties. With this construction the class accuracy remains constant over decades. The compliance of the partial discharge limit values according to IEC 61869-1 guarantees a safe operation. Primary and secondary connections are brass as standard. The protective cover of the secondary terminals is made of transparent polycarbonate. The mounting position is freely selectable. The voltage transformers are designed according to the common national and international standards. Specific requirements defined by the customer are possible on request.
Specifications and Downloads
Technical Specifications
Dimensions
Technical data
Type BD | 12-G1 | 24-G1 | 36-G1 | 72-L1 | |
Standard | IEC/EN 61869-1, IEC/EN 61869-2, IEEE C57.13, IEEE C57.13.1, CAN/CSA 61869 | ||||
Highest voltage for equipment | kV | 12 | 24 | 36 | 72.5 |
Rated power frequency withstand voltage | kV | 28 | 50 | 70 | 140 |
Rated lightning withstand voltage | kV | 75 | 125 | 170 | 325 |
Frequency | Hz | 50/60 | |||
Primary rated current | A | 10 - 2000 | 10 - 2500 | ||
Primary switch-over | A | 2 x 600 | 2 x 1000 | ||
Secondary rated current | A | 1 / 5 | |||
Accuracy classes | 0.1 - 3; 3P; 6P | ||||
Thermal limiting current [Ith] | kA/1s | ≤ 50 | |||
Insulation class | E | ||||
Max. number of cores | 3 |
Type BD | 12-G1 | 24-G1 | 36-G1 | 72-L1 | |
L1 Length of current transformer | mm | 270 | 270 | 270 | 355 |
L2 Length of current transformer incl. base plate | mm | 353 | 295 | 353 | 417.5 |
L3 / L4 / L5 Length of hole spacing base plate | mm | 280 / 295 | 280 / 295 | 280 / 295 | 300 |
H1 Height of current transformer incl. base plate | mm | 245 | 245 | 355 | 650 |
B1 Width of current transformer | mm | 178 | 178 | 210 | 310 |
B2 Width of base plate | mm | 178 | 178 | 178 | 310 |
B3 / B4 width fo hole spacing base plate | mm | 150 / 155 | 150 / 155 | 150 / 155 | 225 |
Approx. weight | kg | 27 | 27 | 36 | 105 |
