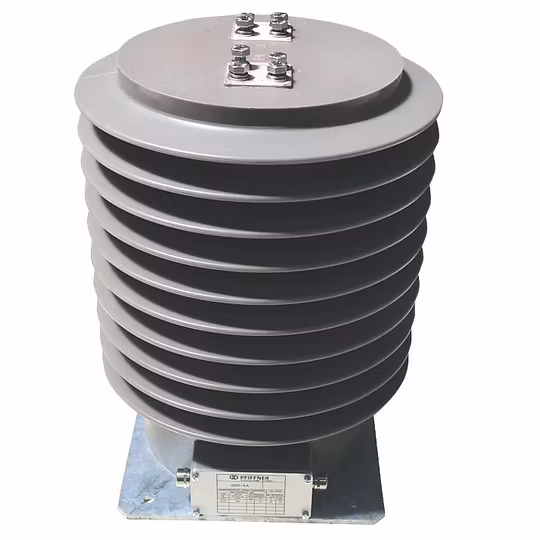

Current Transformer AC1
Support type current transformers AC1 are used in MV outdoor switchgears within the range of 3.6-36 kV. They transform high current into standardised values for electric meters, measuring and protection devices.
The support type current transformer is designed for the mounting in outdoor medium-voltage cells. The magnetic properties of the iron core are ensured by specific padding and potting in epoxy resin. With this construction the class accuracy remains constant over decades. Compliance with the partial discharge limits according to IEC 61869-1 guarantees safe operation. Primary and secondary connections are made of brass. The protective cover of the secondary terminals is made of aluminium and fulfills IP65 requirements. The mounting position is freely selectable. The current transformers are designed according to the common national and international standards. Specific requirements defined by the customer are possible on request.
Specifications and Downloads
Technical Specifications

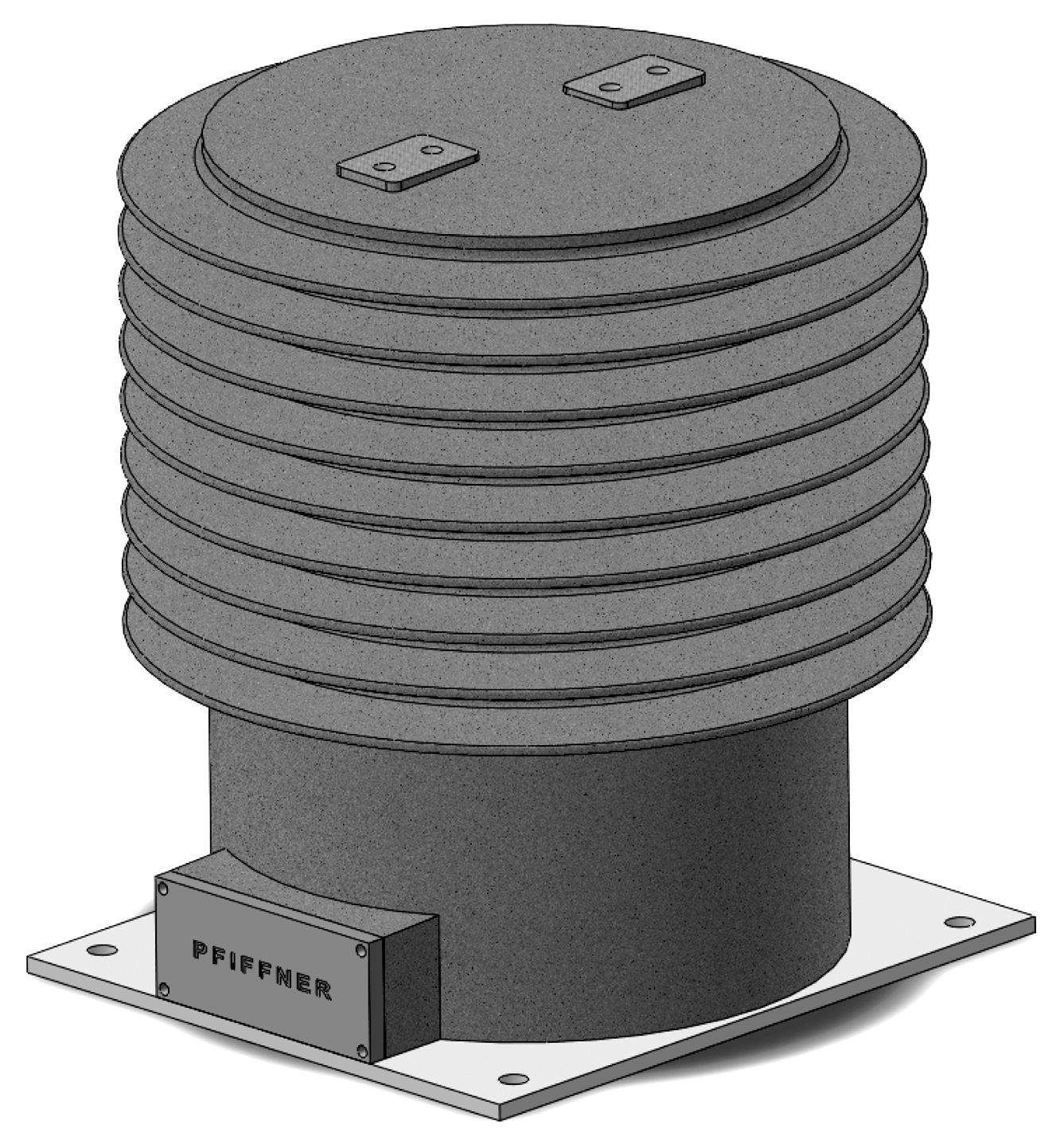

AC1-24

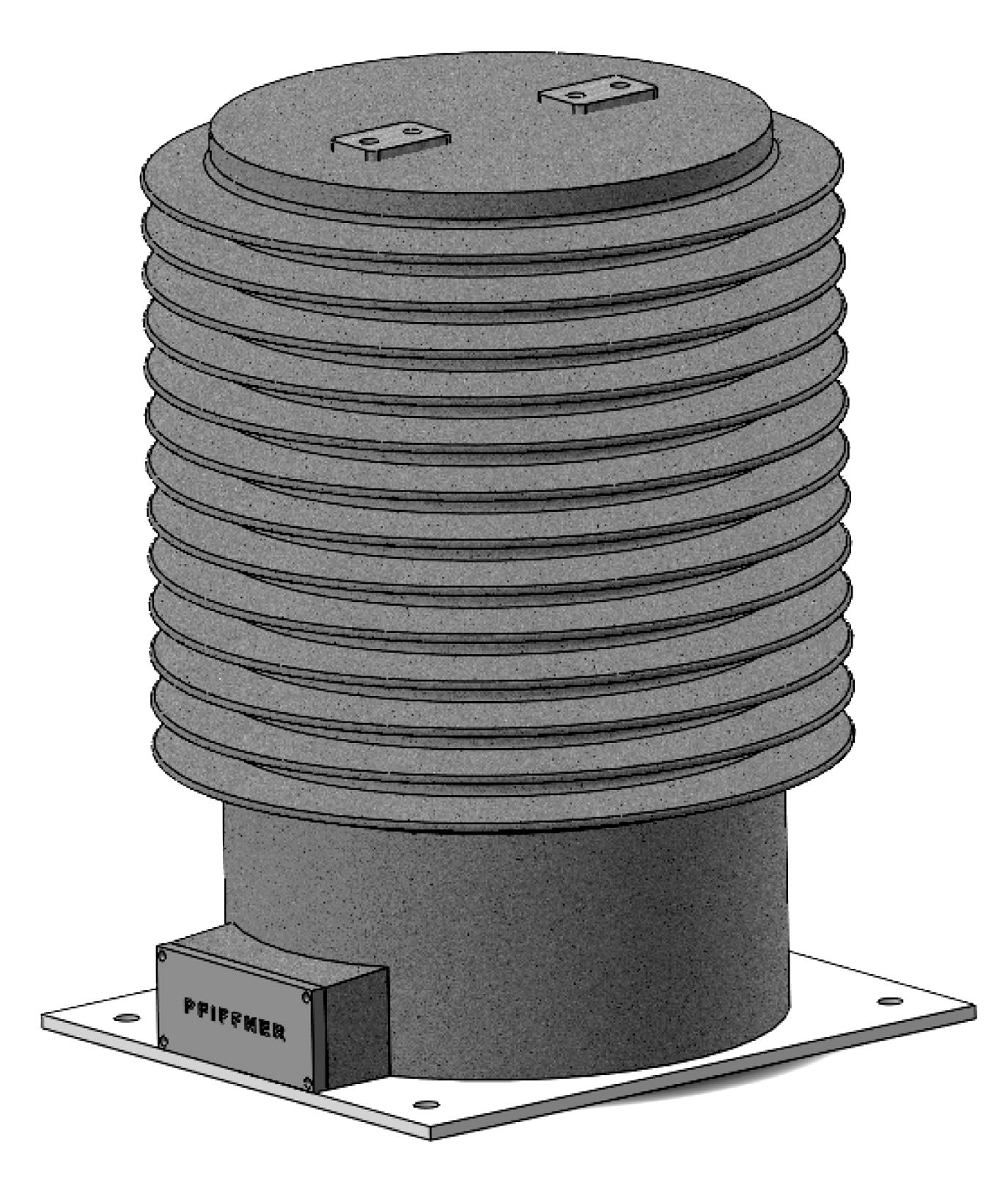

AC1-36
Technical specifications
| AC1-12 | AC1-17.5 | AC1-24 | AC1-36 | ||
| Um | kV | 3.6, 7.2, 12 | 3.6, 7.2, 12, 17.5 | 24 | 36 |
| Frequency | hz | 50-60 | 50-60 | 50-60 | 50-60 |
| Rated primary current | A | up to 5000 | |||
| Rated secondary current | A | 1 and 5 | |||
| Insulation class | E | ||||
| Rated dynamic current ldyn | kA | 2.5 lth | |||
| Rated short thermal current lth | kA | up to 1000xlpan, max 100 kA | |||
| Number of cores | 5 | ||||
| Creepage distance | mm | 820 | 820 | 820 | 1220 |
| NBI/BIL | kV | 125 | 125 | 125 | 170 |
