TTR 2796

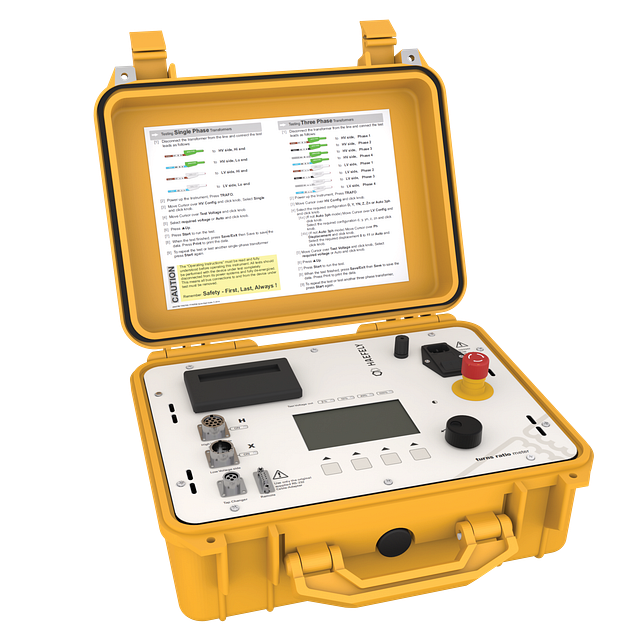

The Transformer turns ratio meter TTR 2796 measures power and distribution transformers' turns ratio with the highest accuracy in the industry at up to 250V AC.
The Transformer Test Equipment instrument combines mobility and user friendly handling with unmatched accuracy of up to 0.03%.
The higher test voltage of 250V, together with the high precision, assures authentic results especially on large power transformers. The optional Arbitrary Phase Software allows measuring non conventional phase shift on special transformers like phase shifting, rectifier or arc-furnace.
Features
- Fully automated measurement of turns ratio, voltage ratio, phase displacement and excitation current.
- Highest measurement accuracy in the industry of up to 0.03% makes the 2796 the perfect tool for preventive maintenance measurement
- Automatic winding connection identification AWCI (patent pending) and automatic vector group detection supports the quick and easy operation
- Build-in printer for quick test report generation and total prevention of data loss
- Lightweight, compact and rugged design for use in harsh environments. Closed case is IP65 waterproof, open case is splash proof
- Remote control software to operate the unit from a laptop PC and for easy gathering exchanging and analyzing of measurement data.
- Better transformer excitation due to higher test voltage of 250V
- Quick setup with intuitive guide-through user interface. Test setups and results can be stored and recalled, printed out with the built-in printer or used for later analysis
- Safety connection control feature proofs test setup before applying regular test voltage to guarantee safety of the personnel and instrument.
- Remote tap changer switch enables convenient testing of multi-tap transformers.
- Measurement of phase displacement of transformers with irregular vector groups like: phase shifting, rectifier, arc-furnace and traction transformers.
