SGVA impulse test systems can be used to generate very large impulse voltages simulating lightning strokes and switching surges

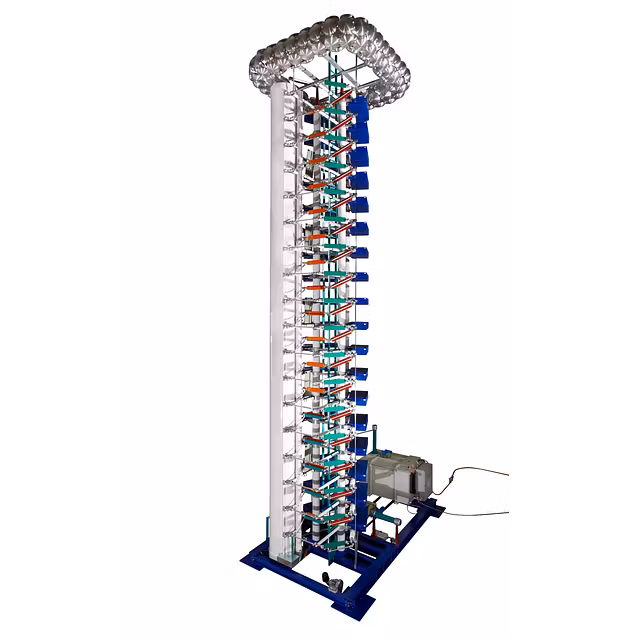

SGVA - Impulse Voltage Generators 400 kV - 10000 kV

SGVA is the largest of the three impulse voltage generator models. Capable of delivering 20 kV to 10'000 kV across a range of models. With 20 kJ or 30 kJ as per stage energy SGVA is useful on HV and UHV  network components. Systems are so powerful they can be used to conduct breakdown tests on cables

Find your local contact

Features

  • Easy to configure
  • Internal Ladder
  • Resistor holding bins at each stage inside the generator stack
  • Multiple resistor holding sockets on each stage
  • Small internal inductance
  • Mobile on  Air Cushions
  • Baseframe holds the Charging rectifier
  • Internal Over Shoot compensation option
  • Impulse Current generation accessory option
  • Outdoor models available
