SGSA impulse test systems can be used to generate impulse voltages simulating lightning strokes and switching surges

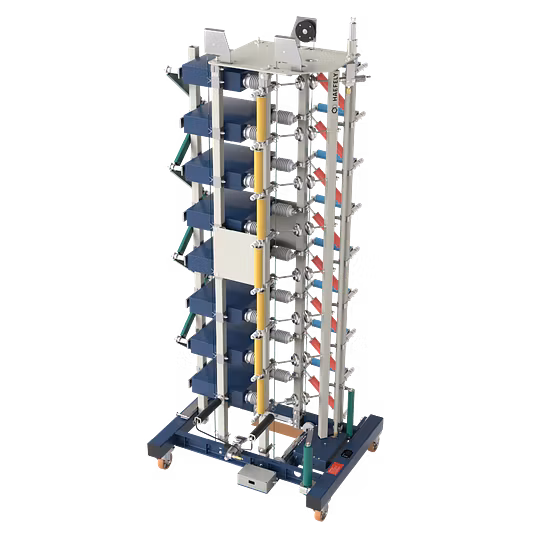

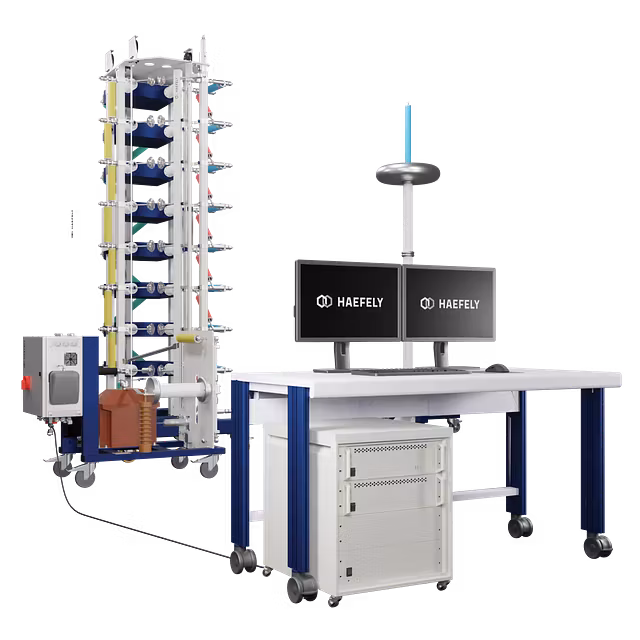

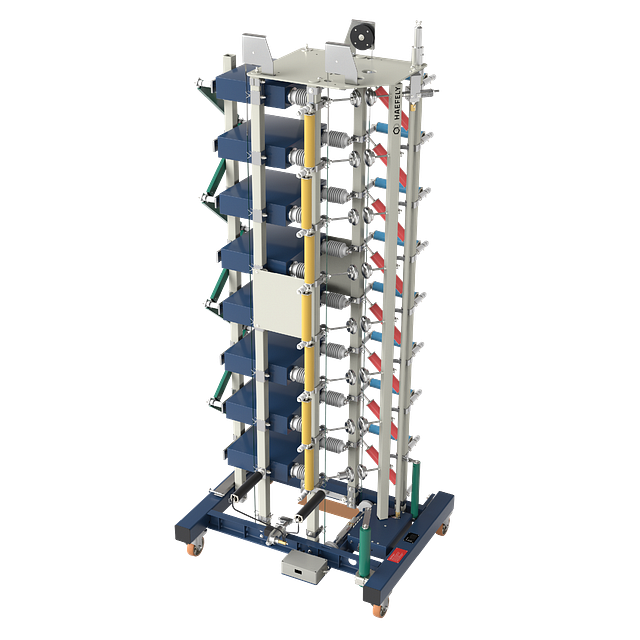

SGSA - Impulse Voltage Generators 800 kV

SGSA is the smallest of the three impulse voltage generator models. Capable of delivering 10 kV to 1200 kV across a range of models. With 5 kJ as per stage energy SGSA is useful on LV and MV network components

Factsheet
Find your local contact

Features

  • Easy to configure
  • Small footprint
  • Multiple resistor holding sockets on each stage
  • Mobile on castors
  • Impulse Current generation accessory option
