SGDA

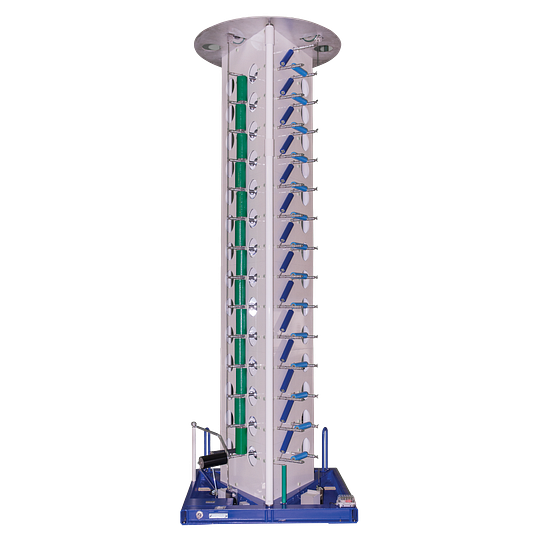

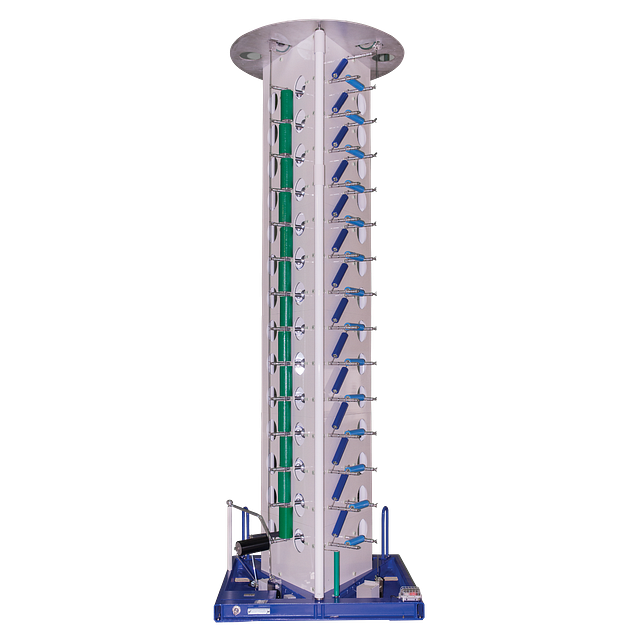

SGDA impulse test systems can be used to generate impulse voltages simulating lightning strokes and switching surges
SGDA is the second of the three impulse voltage generator models. Capable of delivering 10 kV to 3 200 kV across a range of models. With 5 kJ or 10 kJ as per stage energy SGDA is useful on LV and MV and HV network components.
Features
- Easy to configure
- Small footprint
- Very Small internal inductance
- Multiple resistor holding sockets on each stage
- Mobile on castors or Air Cushions
- Impulse Current generation accessory option
- Outdoor models available
