R T Series

R T Series impulse dividers coupled with secondary units measure Full and front chopped lightning impulses and impulse voltage with steep wave fronts

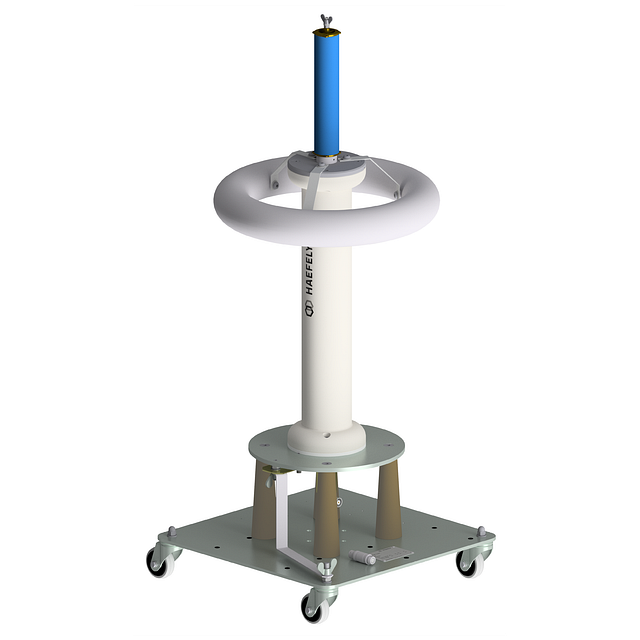

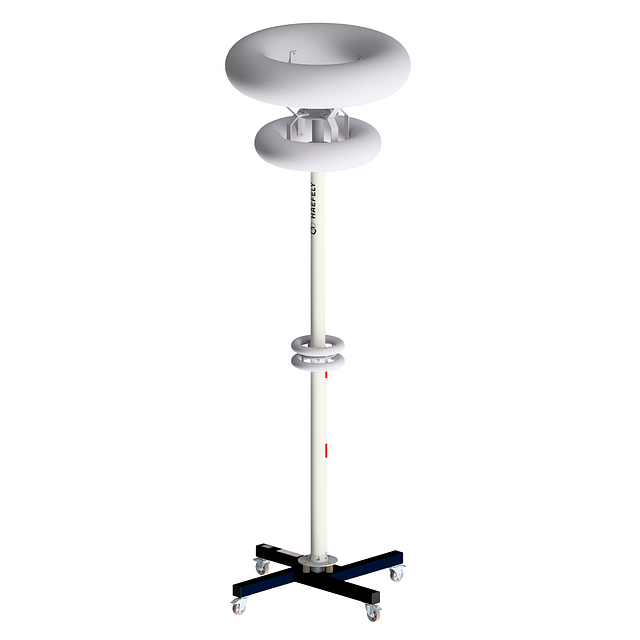

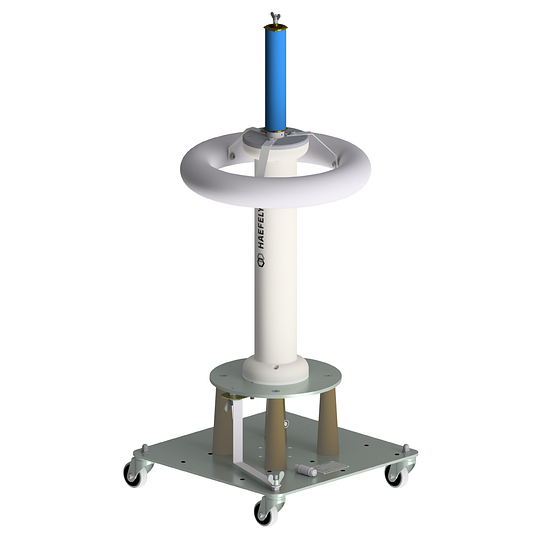

R T Series - Resistive Impulse Dividers 100 kV - 2000 kV

R T dividers are designed with special care so the transfer errors are negligible for LI wave shape. Resistive dividers do not have any slowdown effect on rise time as do capacitive dividers. Rise times as small as 10 ns to 60 ns can be addressed

Find your local contact

Features

  • Built with anti-Inductive CrNi wires
  • Easily exchanged secondary units for different ratios
  • Specially engineered toroidal electrodes for corona free operation
