R REF & RCZ REF Series

RCZ type universal dividers can be used for measurements of AC, DC and Lighning impulses (full and tail chopped). These dividers can be used for calibration of other voltage dividers. Reference dividers, type R, are designed for the calibration of voltage dividers for full and front-chopped lightning impulse voltages.

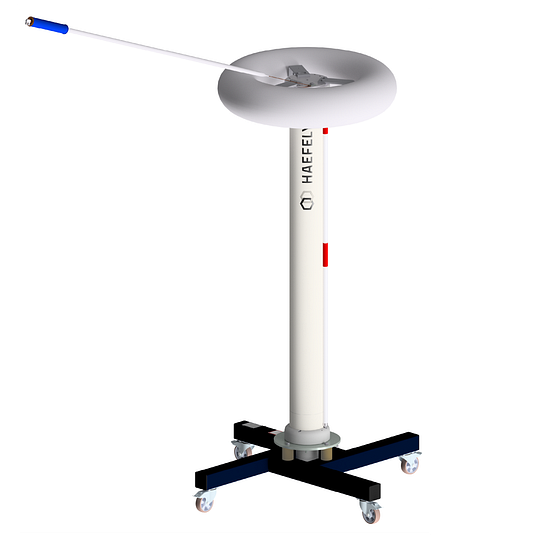

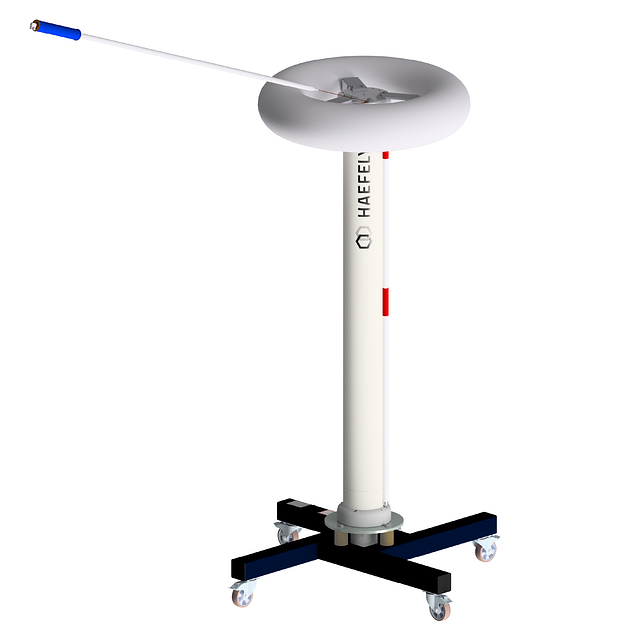

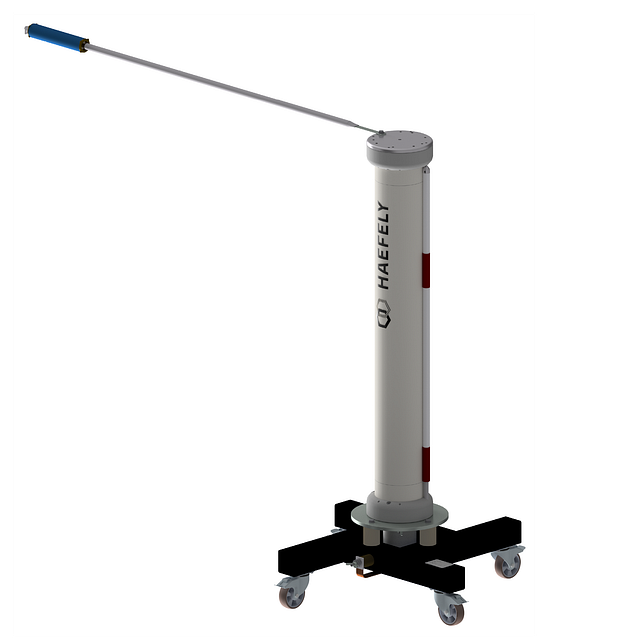

RCZ Series - Universal Voltage Dividers AC, DC and Impulse Measurements

RCZ dividers ara available in 500 kV(LI) and 800 kV(LI) versions and come equipped with a variety of secondary units and attenuators. RCZ dividers can be built as outdoor units for longterm testing

Factsheet
Find your local contact

Features

Measurements of AC, DC and Impulse Voltages
Stable measurement ratio
Step response per IEC 60060-2

Specifications and Downloads

Images

RCZ Series - Universal Voltage Dividers AC, DC and Impulse Measurements
RCZ Series - Universal Voltage Dividers AC, DC and Impulse Measurements

Back to overview
