IP4B

The IP4B capacitive coupling clamp is primarily used to inject fast transient/burst interference pulses into signal, data and power line cables.

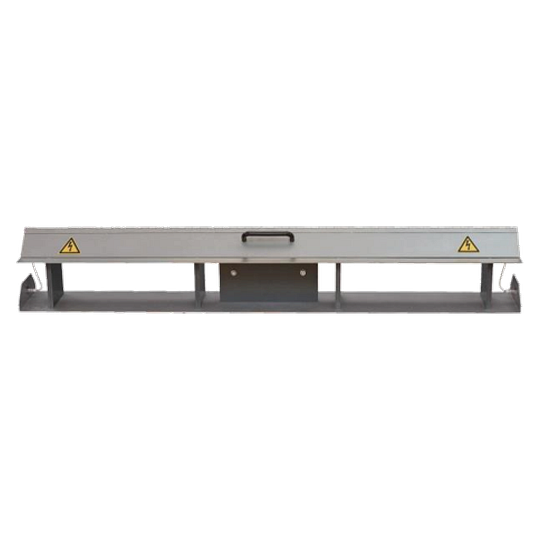

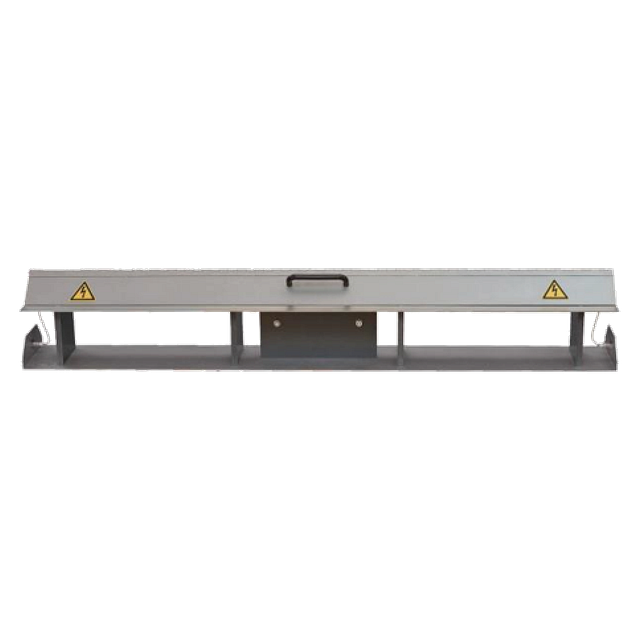

IP4B - EFT/Burst Capacitive Coupling Clamp according to IEC/EN 61000-4-4 Ed. 3

The latest standard IEC/EN 61000-4-4 also allows the capacitive coupling method to be used for pulse injection into AC and DC power lines when no appropriate decoupling network is available. The coupling capacitance (typically 100 pF) between the coupling clamp and the cable inserted depends on the cable type, the diameter and other factors like screening, etc.

Find your local contact

Features

  • Designed as per latest IEC/EN 61000-4-4
  • EFT/Burst testing of signal, data and power line cables
  • For cable diameter from 0.1 - 40 mm
  • Active coupling length 1 m
