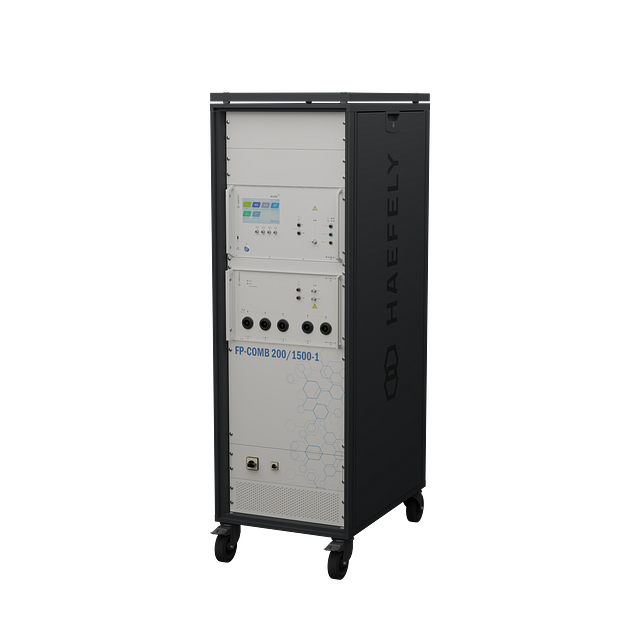

FP-COMB 1500-1 Series
The CDNs FP-COMB 63/1500-1, FP-COMB 125/1500-1 and FP-COMB 200/1500-1 coupling/decoupling networks – for Surge Combination Wave, Ring Wave and EFT/Burst – is fully compliant with the standard requirements of IEC/EN 61000-4-4, IEC/EN 61000-4-5 and IEC/EN 61000-4-12 with AXOS8.
The CDN is controlled by the AXOS8 expandable immunity test system(s). The CDN automatically changes the coupling paths, phase angles and source impedance based on test parameters set by the user via the AXOS controller – depending on the standard and coupling mode.
The CDN was designed to reduce residual voltage levels by integrating the proper decoupling inductors for each type of CDN application in order to meet the requirements (with regard to voltage drop at the rated current). Apart from covering the EN/IEC 61000-4-5 standard, the FP- COMB 63/1500-1, FP-COMB 125/1500-1 and FP-COMB 200/1500-1 also covers tests to meet surge requirements outlined in ANSI/IEEE C62.41with AXOS8.
Features
- Surge Combination Wave, 1.2/50 μs - 8/20 μs
- Ring Wave
- Electrical Fast Transient (EFT) / Burst
- 7 kV impulse voltage for Surge Combination Wave and Ring Wave
- 5 kV impulse voltage for EFT/Burst
- Line voltage 1500 V DC / 1000 V ACrms (DC-/DC+)
- Phase angle synchronization for each path for the option AC
- FP-COMB 63/1500-1: 63 A EUT current per phase
- FP-COMB 125/1500-1: 125 A EUT current per phase
- FP-COMB 200/1500-1: 200 A EUT current per phase
