DTTS

DTTS series of transformer test sets make it easy to conduct IEC / IEEE mandated routine and type tests on distribution transformers

DTTS 3-2500 - Distribution Transformer Test Systems

DTTS brings to the test floor  ease of operation and comprehensive reporting. Sophisticated frequency converter, totally integrated software suite, high accuracy of Loss measurements necessary for Ecoline Tier 2 transformers and a long reference list are well covered by the DTTS

Factsheet
Find your local contact

Features

  • Integrated testing
  • High accuracy at very low currents and voltages
  • All routine tests
  • Partial Discharge measurement
  • Customizable test reports
  • Testing times as short as 10 minutes per transformer

Specifications and Downloads

Images

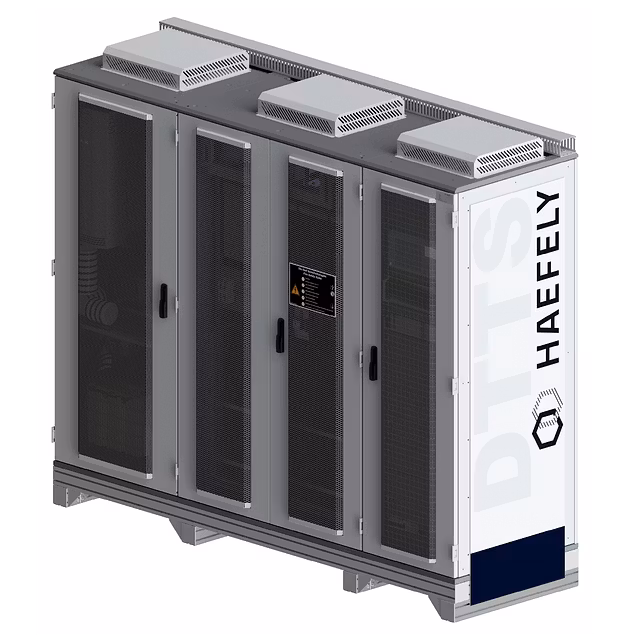

DTTS 3-500 - Distribution Transformer Test Systems

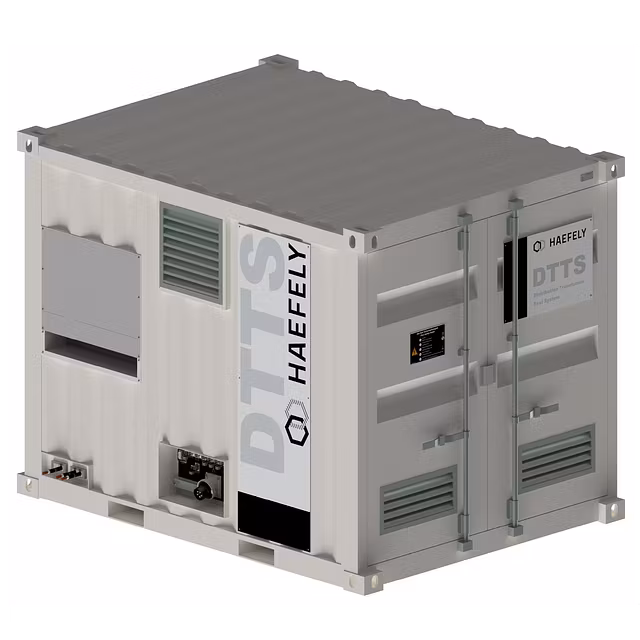

DTTS 3-2500 - Distribution Transformer Test Systems

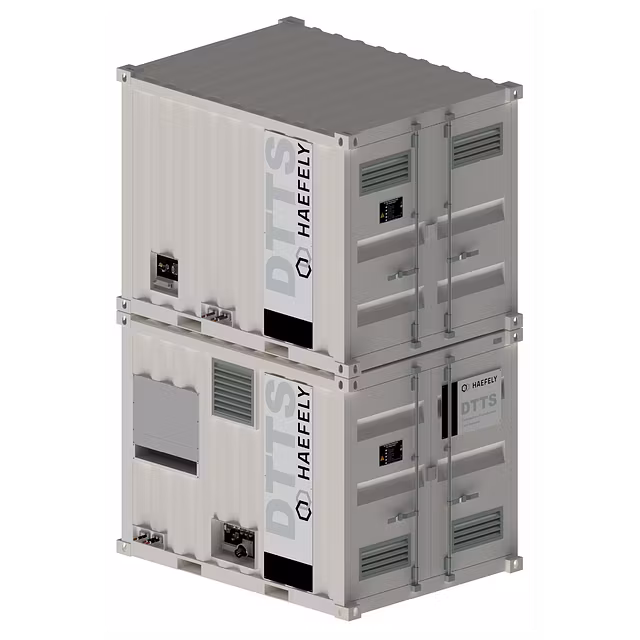

DTTS 3-5000 - Distribution Transformer Test Systems
DTTS - Distribution Transformer Test Systems - Low Power Test Bay

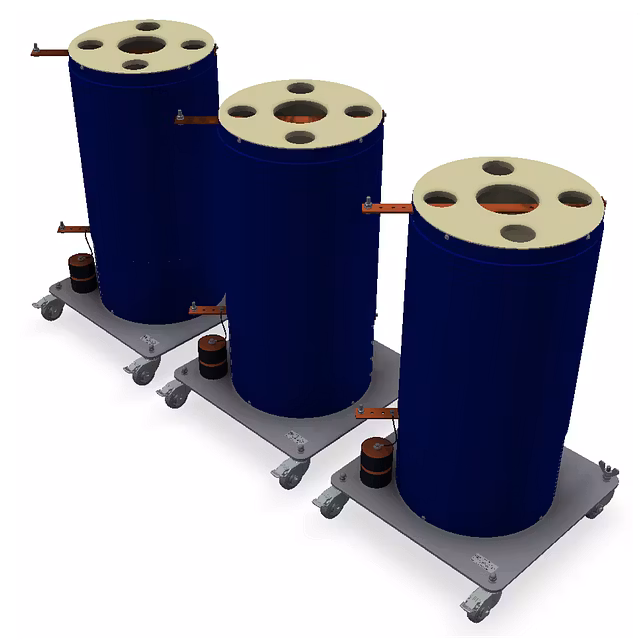

DTTS - Distribution Transformer Test Systems - HV Filter

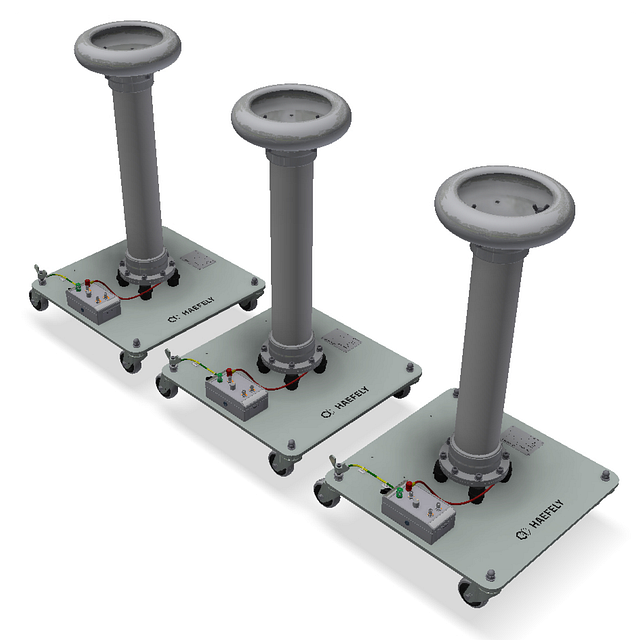

DTTS - Distribution Transformer Test Systems - PD Coupling Capacitors
