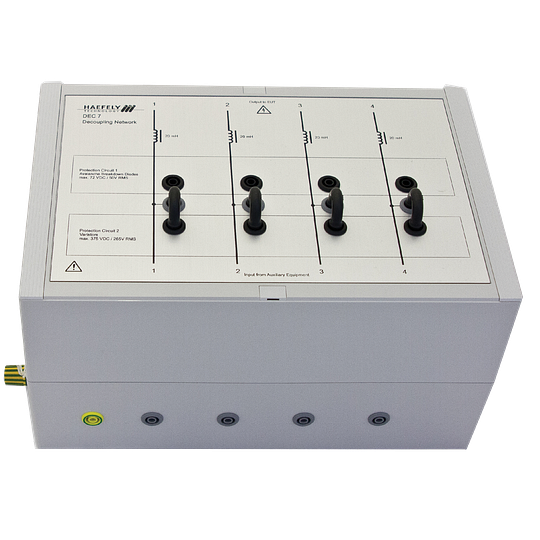

DEC 7

The DEC 7 is used for decoupling auxiliary equipment from an EUT tested with either 1.2/50 us - 8/20 us combination wave impulses or ring wave 100 kHz impulses up to 6.6 kV peak.

DEC 7 - Decoupling Network for Asymmetrical Data and Control Lines

It is used to decouple unshielded asymmetrical control and data lines according IEC/EN standards. Up to 4 wires can be tested simultaneously. To obtain maximum flexibility only decoupling and protection elements are included in the DEC 7. Coupling circuits, which depends on the EUT to be tested, can be placed separately in the test setup. Manual coupling selection of the protection elements for best protection of the auxiliary equipment. Default protection elements are varistors and breakdown avalanche diodes (ABDs). With such elements the capacitive load to the EUT lines is small. The decoupling elements can be selected easily. It is also possible to test without any protection elements.

Find your local contact

Features

  • Decoupling inductors 20 mH not compensated
  • 1.2/50 us - 8/20 us combination wave impulses
  • 100 kHz ring wave impulses
  • Breakdown avalanche diodes and varistors as protection
  • Up to 4 wires can be tested
  • Signal Bandwidth up to some 100 Hz
