CR

CR Series damped-capacitve impulse voltage dividers coupled with secondary capacitor units measure the impulse voltages delivered by an impulse generator

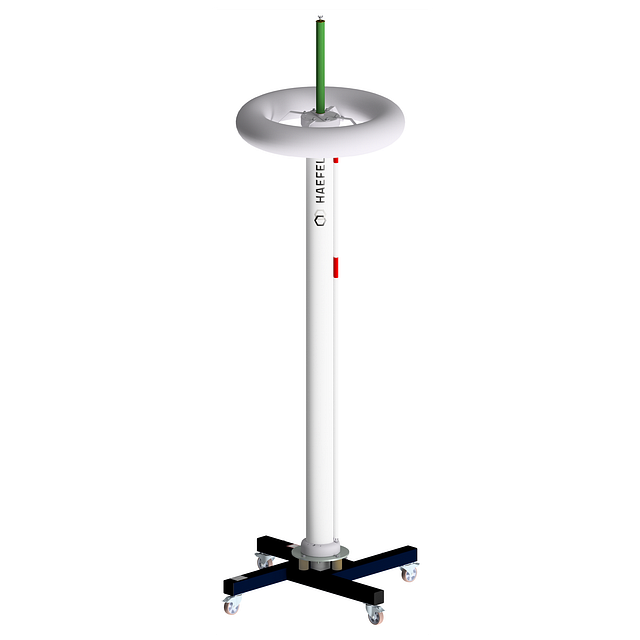

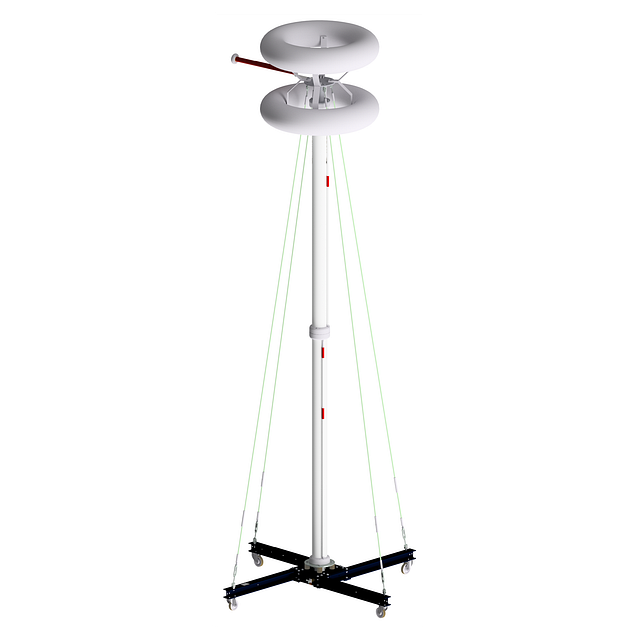

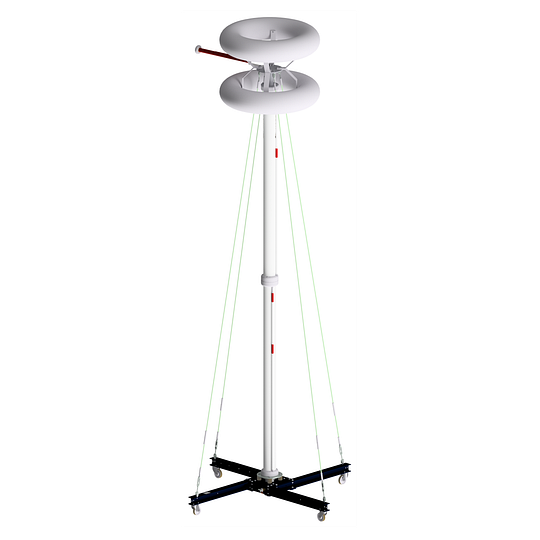

CR - Damped Capacitive Impulse Dividers 600 kV - 4,000 kV

CR dividers are designed and optimized for high dynamic behavior and are used for Full and tail chopped LI and SI wave forms. The measuring accuracy and step response both meet the requirements of the IEC 60060-2. CR dividers are mounted on a baseframe with castors

Find your local contact

Features

  • Vast range of impulse voltage measurement
  • Easily exchanged secondary units for different ratios
  • Specially engineered toroidal electrodes for corona free operation
