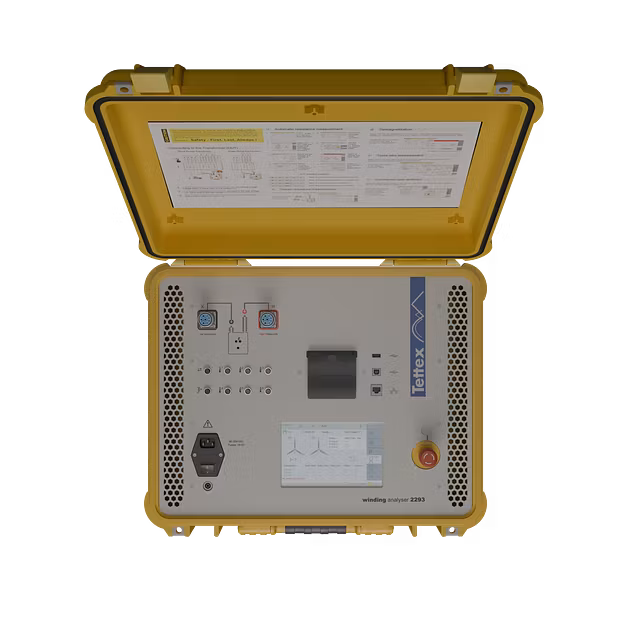

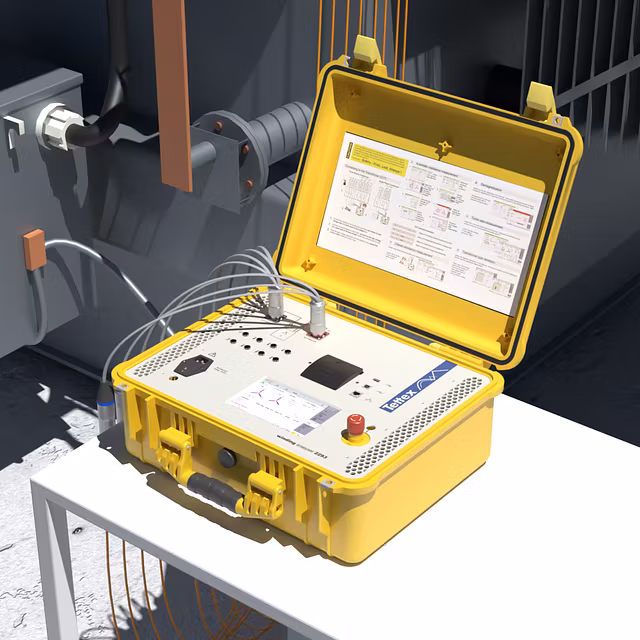

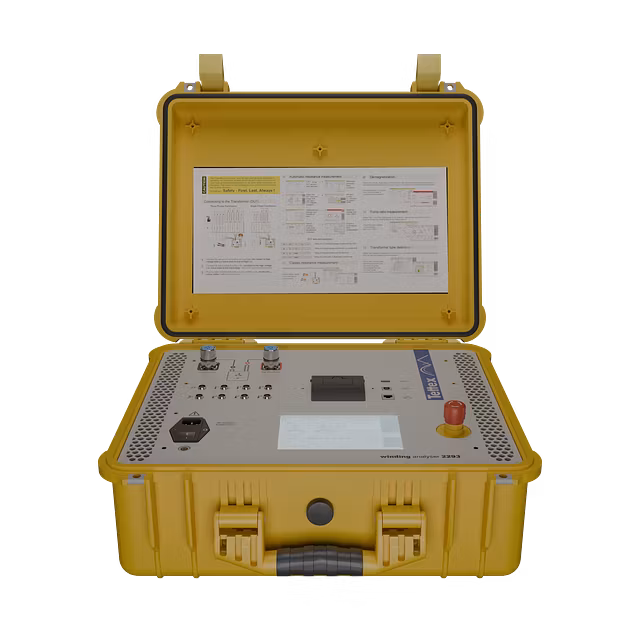

WA 2293
The WA 2293 is an automatic winding analyser, optimized for three phase power and distribution transformer measurements.
It uniquely combines winding resistance measurement, turns ratio, dynamic resistance measurement, core demagnetization, transformer type detection, magnetic balance, short circuit impedance and heat run test (temperature rise and cooling curve) in the fastest single instrument solution on the market.
A simple “one-time-connection” system drastically reduces measuring time: once connected all tests can be performed without needing to reconnect
Features
- Transformer winding resistance, turns ratio, dynamic resistance on tap changer, type detection, arbitrary phase ratio measurement, demagnetization, short circuit impedance, magnetic balance and heat run test (heat rise and cooling curve).
- Simple “one-time-connection” system.
- Unique simultaneous winding magnetization method for winding resistance measurements.
- Touch screen interface with full graphical test visualization.
- Dynamic resistance for tap changer diagnosis
- Tap changer control signal (controller – option)
- Advanced procedure for turns ratio and phase displacement measurement
- Demagnetisation function
- Automatic magnetic balance test
- Short circuit impedance test at reduced current
Specifications and Downloads
Images
Videos
WA 2293 - Haefely's Automatic Transformer Winding Analyser
WA 2293 - Clamp disconnection during winding resistance measurement with WA 2293
